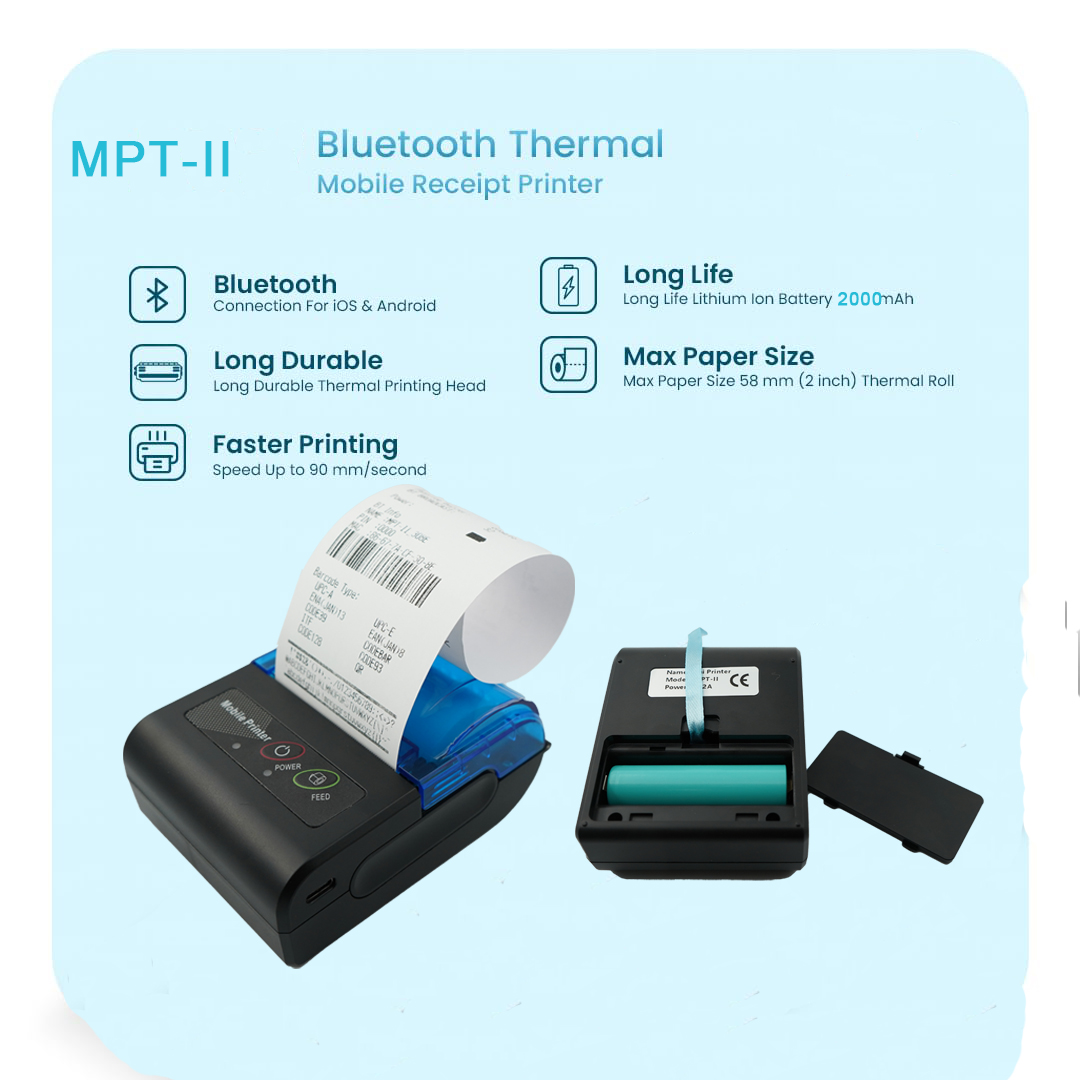

This is a Bluetooth Portable Thermal Printer with a width of 58mm. It is equipped with a single battery of 2000 mAh and supports stable Bluetooth wireless connection (compatible with Bluetooth 4.0 and above), enabling quick pairing with Android and iOS smartphones. It also retains a USB wired interface, supporting wired connection and fast charging. Multiple connection methods are available, facilitating use in various scenarios. Zero ink, zero noise, low power consumption and portable wireless design are the advantages of Peit thermal printers.
This Bluetooth Portable Thermal Printer is equipped with high-speed and high-precision printing capabilities. The maximum printing speed can reach up to 90 millimeters per second. It can output clear text, barcodes, QR codes and simple graphics. The printing quality is stable, without any blurring or missing characters. It supports multiple languages and mainstream printing formats, is compatible with mobile terminals, and can meet the printing needs in various scenarios. It is widely applicable to printing requirements such as merchant receipts, supermarket receipts, takeout orders, logistics transportation labels, product price tags, office notes, and travel tickets, and is a necessary printing tool for street vendors, logistics couriers, retail merchants, business personnel, and daily household use.
| ITEM | Parameter | |
| Printing | Printing method | Thermal printing |
| Resolution | 203dpi, 8dots/mm | |
| Printing speed | 90mm/s | |
| Valid printing width | 48mm | |
| Interface | Bluetooth (Android + IOS), Type-c | |
| Power saving | Sleep mode | YES |
| Character Set | Font | ASCII:9×17,12×24; Multiple code pages support |
| Barcode Symbologies | 1D | UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, |
| CODEBAR, CODE128, CODE93 | ||
| 2D | QR code | |
| Graphics | supports bitmap printing with different density and user defined bitmap printing (Max. 40K for per bitmap, and Max. 64K for total) | |
| Detection | Sensors | Paper out detection |

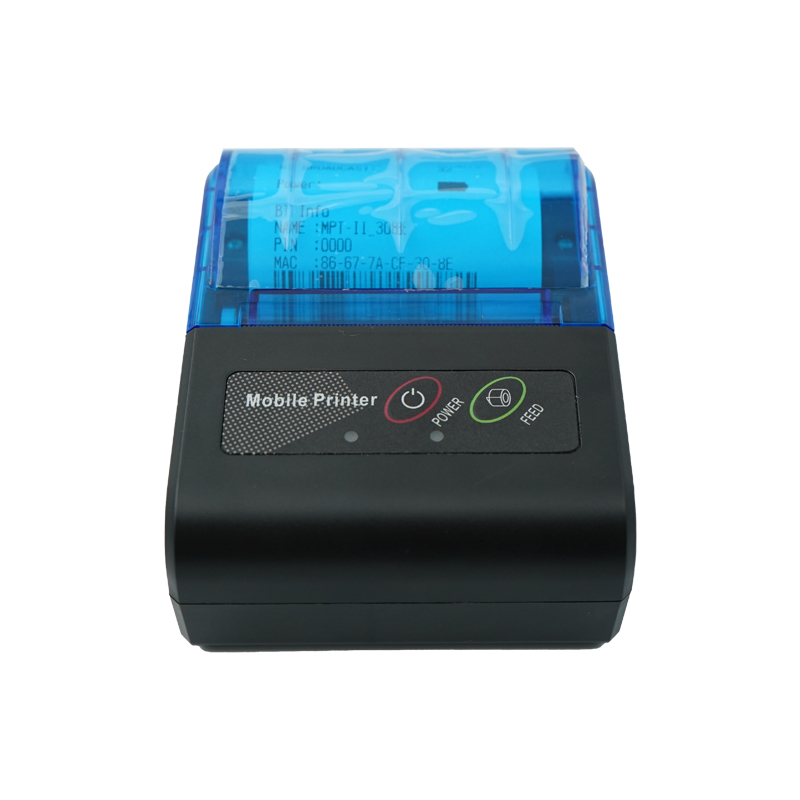

| LED indicator | ERROR | Red |
| STATUS | Blue | |
| Power / Charging | Green | |
| Charging | Charger | 1) 5V/1A in Adapter, |
| 2) 5V/500mA in computer USB connector | ||

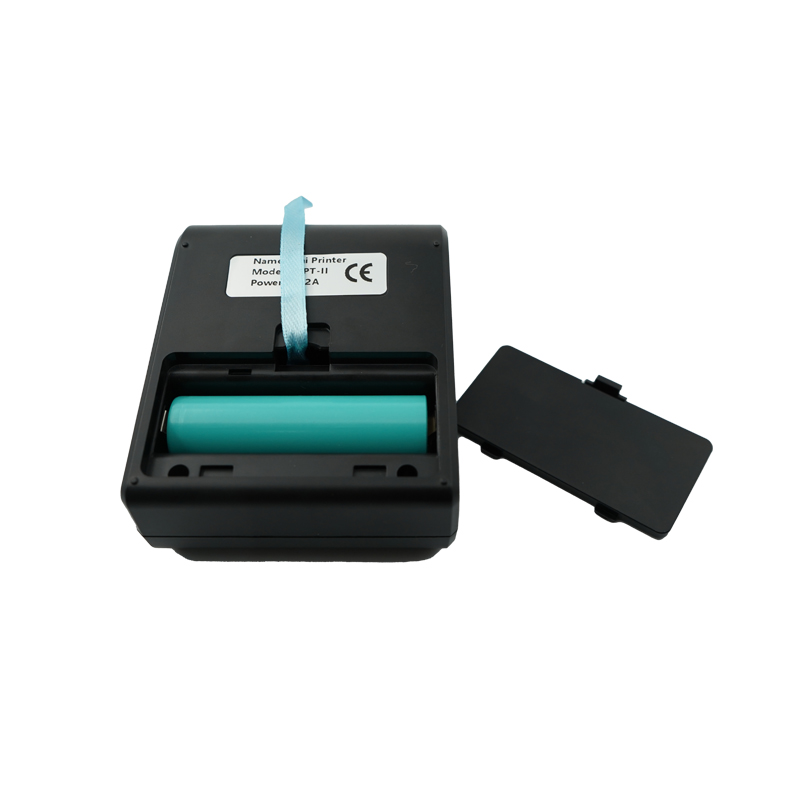

| Battery | 2000mAh/3.7V rechargeable Li-ion battery | |
| Full charge can print 200~250m (printing density not more than 12.5%) or 80~100mm (printing density not more than 25%) | ||
| Recommended paper | FD210, PD150R, PD160R | |
| Paper width | 58mm | |
| Paper thickness | 60～80μm | |
| Paper roller diameter | ≤50mm | |

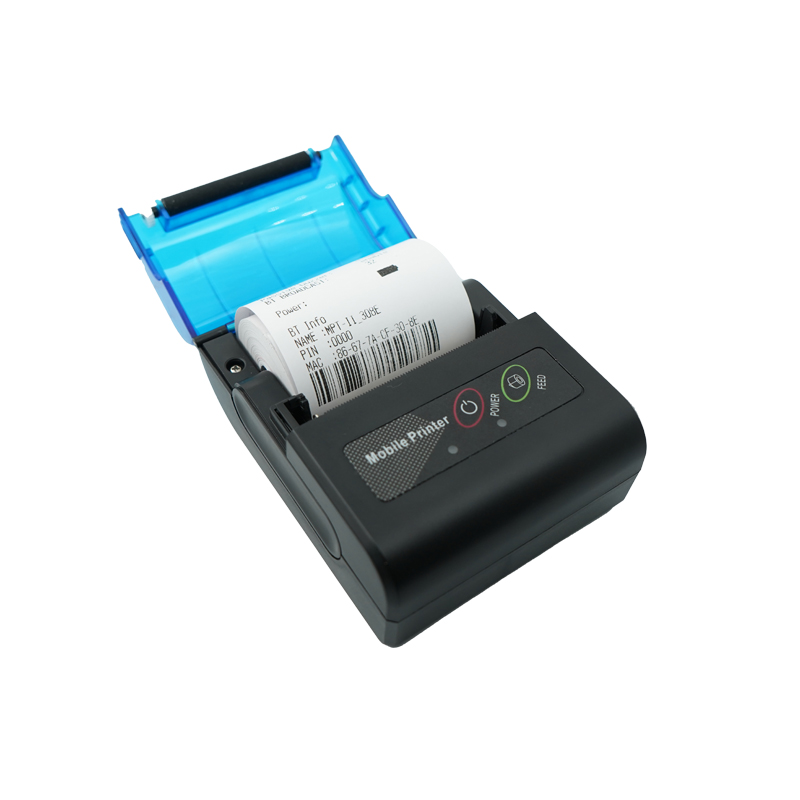

| Paper loading | Easy loading mechanism | |
| Physical characteristics | Working condition | -10°C~50°C , 20%~85%RH |
| Storage condition | -20°C~70°C, 5%~95%RH | |
| Dimension | 150*110*65mm | |
| Weight | 197g (without paper roll) | |
| Reliability | TPH | 50km (not more than 12.5% printing density)/100 million pulses |
| Software | Emulation | ESC/POS compatible command set |
| Driver |
Windows XP//Win7/Win8/Win10
|
|
This printer has a wide range of applications. We are a manufacturer of android bluetooth printers in Xiamen. We can provide ODM/OEM customization services and it can be used in commercial retail, logistics and catering, mobile office, outdoor business, personal daily use, and various other scenarios.
The Bluetooth Portable Thermal Printer can be used to print supermarket shopping receipts, store consumption slips, product price tags, membership consumption records and boutique transaction slips, enabling quick checkout and orderly operation.
It can be used to quickly print out the list of takeout orders, the consumption receipts for dine-in meals, and the kitchen pickup lists, effectively solving the problem of order backlog and improving the efficiency of food delivery.
It can be used for printing express delivery labels, logistics transportation labels, parcel sorting labels and warehouse inventory labels.
Xiamen Peite is a professional manufacturer specializing in the research, production and sales of portable thermal ticket printer equipment. It possesses a complete industrial chain resource and a mature production system. We offer customized services including private logo printing, personalized packaging, software adaptation, and multilingual version development, to meet the personalized demands of global distributors, retailers, and brand sellers for OEM and ODM. All products undergo rigorous aging tests, Bluetooth connection stability tests, high and low temperature tolerance tests, and printing quality inspections before delivery. This effectively ensures the stable quality, low failure rate and long service life of the products.
