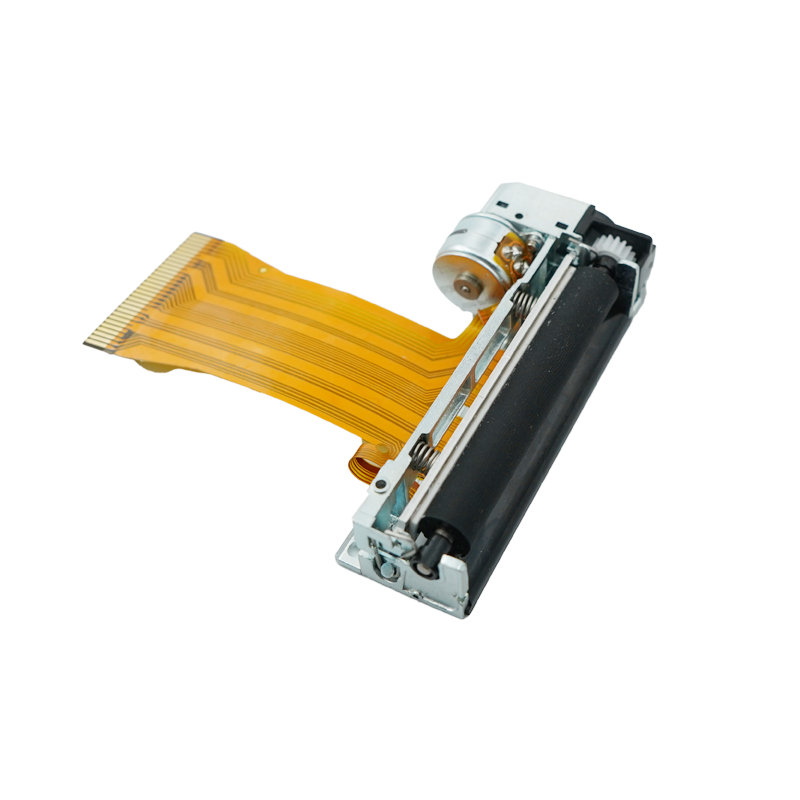

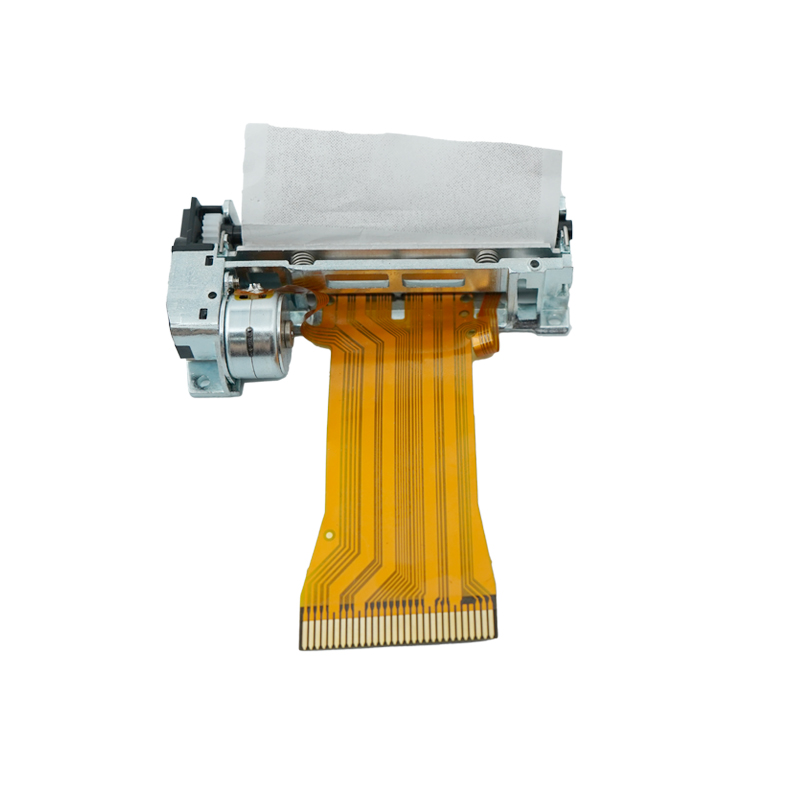

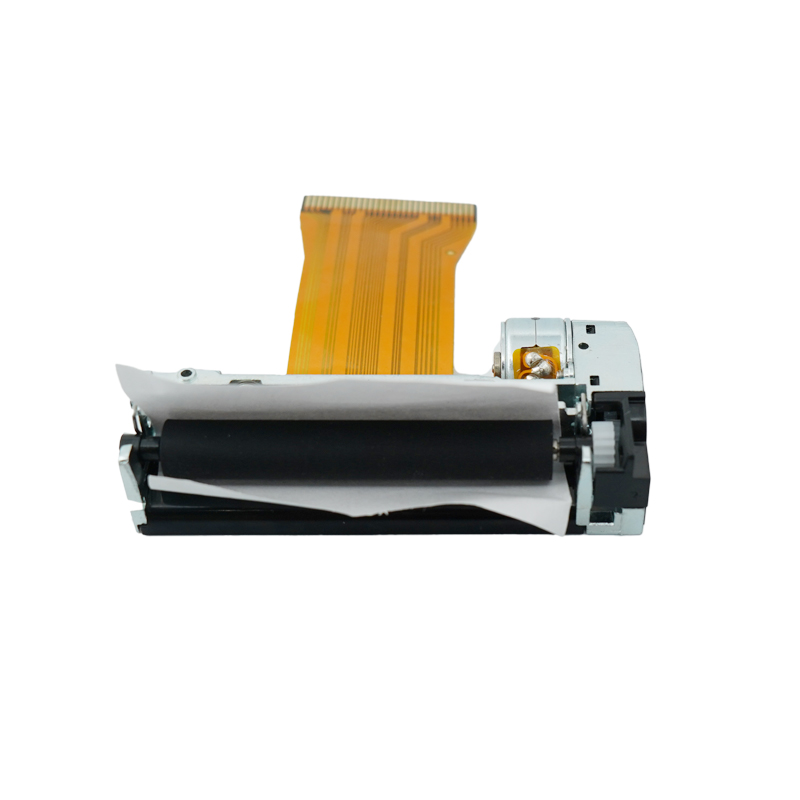

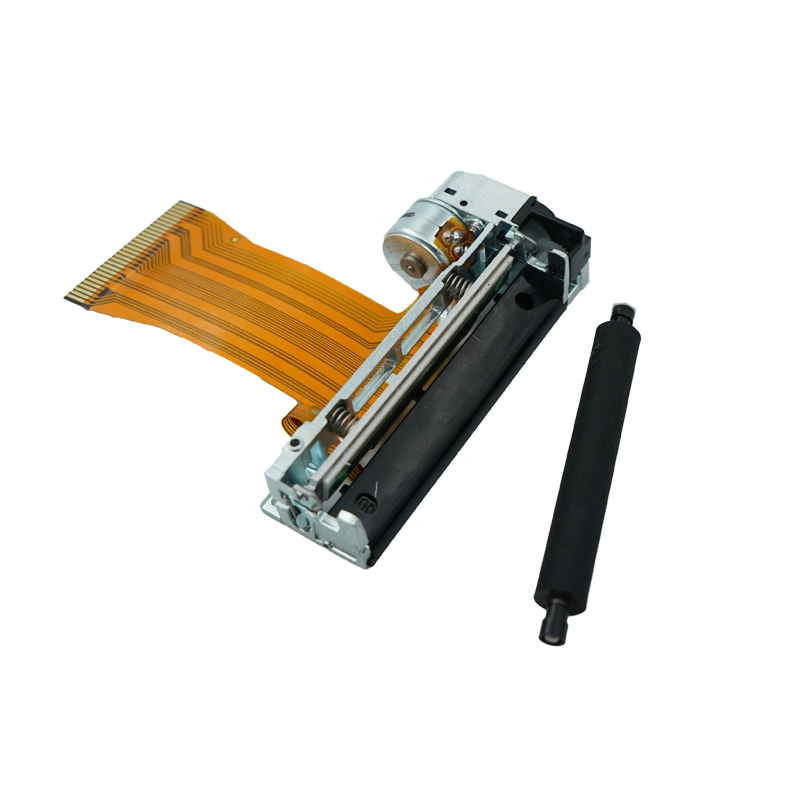

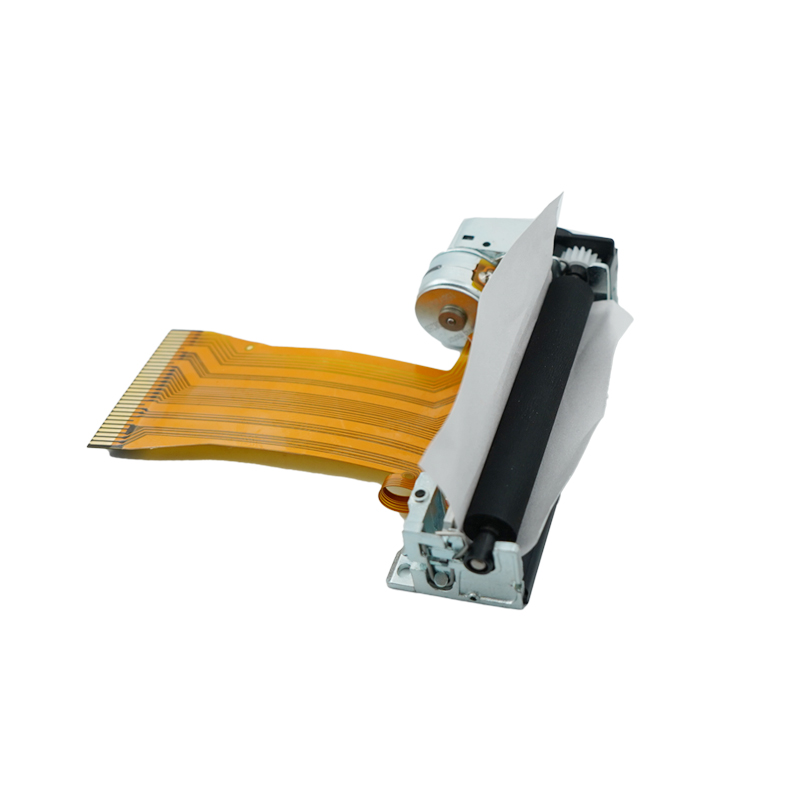

58mm Receipt Thermal Print Head

This 58mm receipt thermal print head is the core component of the 2-inch receipt printer device. It adopts direct thermal imaging line printing technology, without the need for ink, ribbons or toner, significantly reducing operating costs. The compact structure and modular design make it easy to install and replace, making it ideal for equipment maintenance and product secondary development. It is equipped with high-precision heating ceramic elements, enabling stable and clear printing of text, graphics and one-dimensional barcodes. With a long service life, it is suitable for high-frequency continuous printing in retail, catering, logistics and industrial measurement equipment.

Advantages of Peite Print Head

Clear and stable printing

Supports a resolution of 8 dots per millimeter and 384 dots per printing line. The 58mm Receipt Thermal Print Head can output clear text, graphics and barcodes. The printed content is not blurry, meeting the recognition requirements for receipts and order tickets.

Simple design, easy to install

The 58mm high speed thermal print head of Peite adopts an integrated modular structure. It supports quick disassembly and replacement, and even the user can easily complete the replacement of the print head. It supports the universal ESC/POS command set and is compatible with most mainstream thermal printer control boards in the market.

Long service life

Xiamen Peite Company's strict control over the print head ensures a print lifespan of over 50 kilometers. It can handle busy printing tasks, such as orders during peak dining hours in restaurants and retail receipts, thereby reducing the frequency of component replacements and equipment downtime.

Compact and small in size

The compact design can be adapted to different device enclosures. Besides desktop POS machines, it can also be installed in portable printers, 4G cloud ticketing printers, vending machines, taxi meters, medical testing equipment, and other embedded intelligent devices, suitable for secondary development projects.

Product Specifications

Purchase Tips for Thermal Print Heads

1. Select the Right Print Head Specifications

Print heads are available in 58mm and 80mm models. Before purchasing, confirm the compatibility of the equipment with the specified size; for the same paper width, the screw holes of the brackets may vary. It is recommended to measure the length, width and pitch of the original print head. Additionally, be aware of whether the equipment uses 9V/12V or 24V voltage. This will affect the print density.

2. Compatibility of Instructions and Drivers

Most 58mm Receipt Thermal Print Heads on the market use the ESC/POS instruction set; some custom devices use proprietary instructions that cannot be plug-and-play. Make sure the motherboard supports the print head.

3. Print Lifespan and Print Quality

The nominal lifespan (such as 50km) is based on the test results under qualified thermal paper; poor thermal paper can scratch the heating surface, significantly shortening the lifespan and causing needle breakage.

Point density (commonly 8 points/mm for 58mm) determines the clarity of text and barcodes; poor print heads are prone to needle breakage and barcode scanning failure.

4. Installation and Protection Tips

The ceramic heating area is sensitive to static electricity. Do not touch the heating surface with your bare hands. It is recommended to wear anti-static gloves under the conditions. Do not scratch the heating layer with hard objects; only thermal paper can be used, and ordinary white paper cannot be printed.

When is it necessary to replace the print head?

1. The fixed vertical lines appear on the small ticket when printing. Even after alcohol cleaning, the white lines still remain, indicating that the heating point has burned out and cannot be repaired.

2. The overall printing color is too light: even after increasing the printing concentration and replacing with brand new thermal paper, it remains very light.

3. The barcode cannot be scanned: the heating is uneven, and the barcode pattern is incomplete.

4. There are missing characters or lines at the fixed position, and the problem persists even after cleaning the rubber roller.

Note: Regularly clean the print head. Dirt on the print head and wear of the rubber roller can also cause similar faults. In this case, replacing the print head is not necessary.
