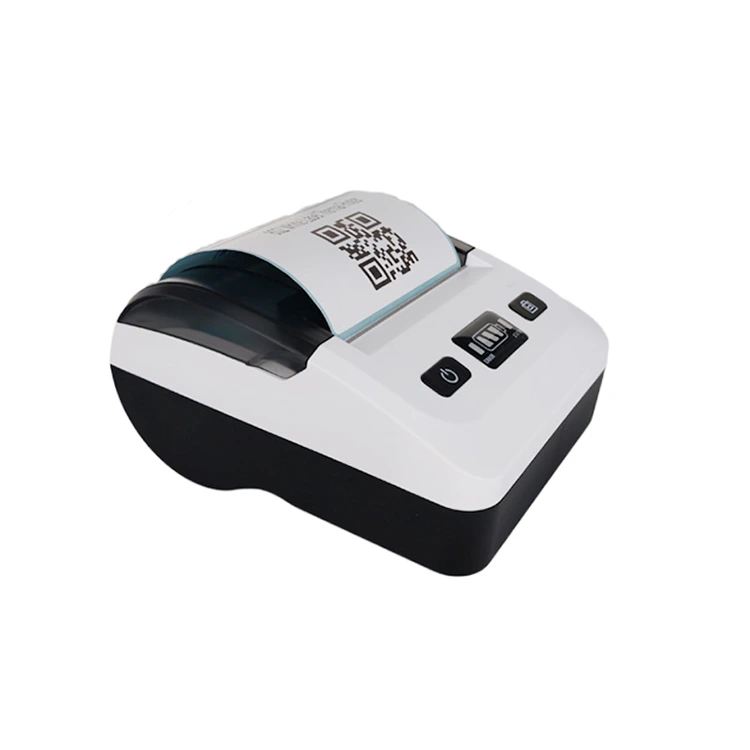

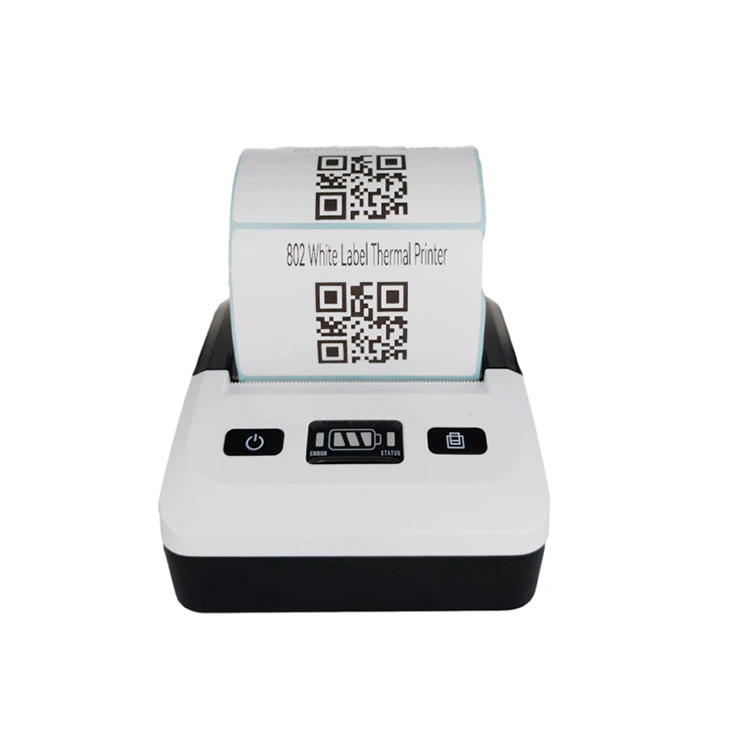

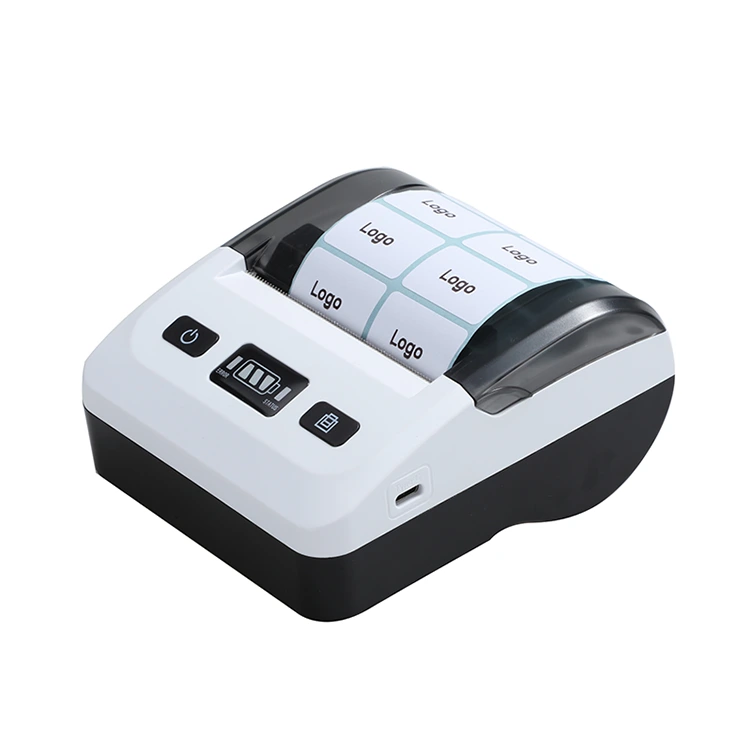

The Barcode Label Thermal Printer, supplied by the Chinese supplier Peite, supports various label paper sizes and types and offers flexible connectivity options such as USB and Bluetooth, ensuring compatibility with a wide range of devices.

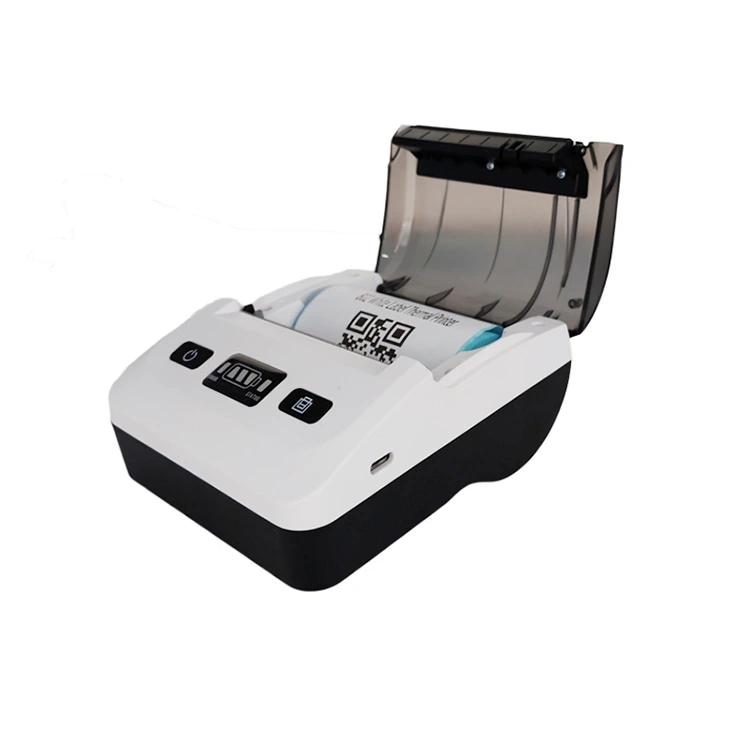

The thermal label printer bluetooth function adopts a flip-top ABS engineering plastic paper-loading structure. The body is equipped with a wear-resistant ceramic-coated print head, which can be compatible with various media such as continuous paper, gap paper, barcode paper, and perforated paper, and has a long service life.
Through intelligent indicator lights, it clearly reflects the status of power supply, paper shortage, cover not closed, and successful connection, allowing you to fully control the operation situation at your fingertips. A red light indicates an error or paper shortage, and a purple one indicates a successful Bluetooth connection. Press the paper feed key once to identify the label paper. Long press the paper feed key and the power button to print the test page.
|
ITEM |
Parameter |
|
|
Printing |
Printing method |
Thermal printing |
|
Resolution |
203dpi, 8dots/mm,576dot |
|
|
Printing speed |
90mm/s |
|
|
Valid printing width |
72mm |
|
|
Interface |
Bluetooth (Android + IOS), Type-c |
|
|
Power saving |
Sleep mode |
YES |
|
Character Set |
Font |
ASCII:9×17,12×24; Multiple code pages support |
|
Barcode Symbologies |
1D |
UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, |
|
CODEBAR, CODE128, CODE93 |
||
|
2D |
QR code |
|
|
Graphics |
|
supports bitmap printing with different density and user defined bitmap printing (Max. 40K for per bitmap, and Max. 64K for total) |
|
Detection |
Sensors |
Paper out detection |
|
LED indicator |
ERROR |
Red |
|
STATUS |
Blue |
|
|
Power / Charging |
Green |
|
|
Charging |
Charger |
1) 5V/1A in Adapter, |
|
2) 5V/500mA in computer USB connector |
||
|

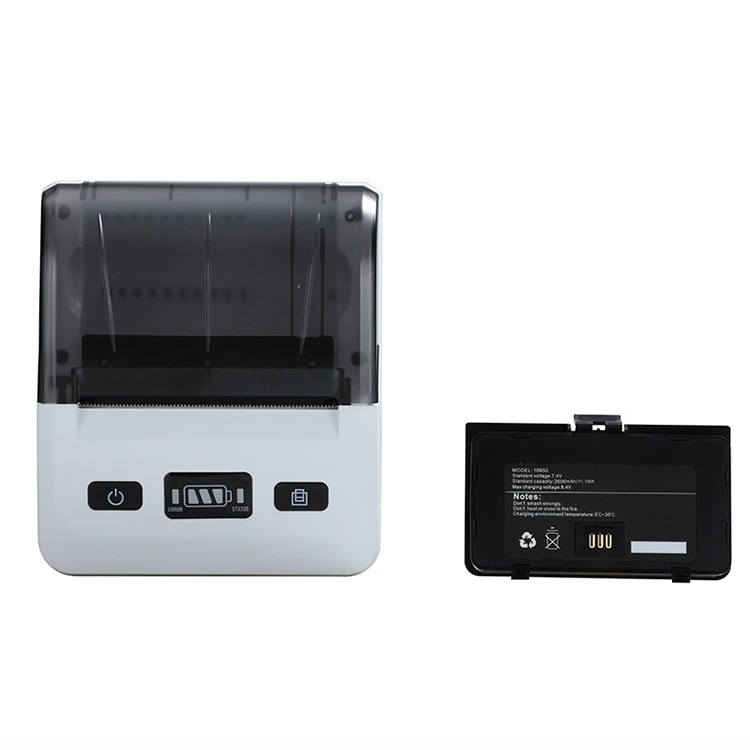

Battery |
2600mAh/3.7V rechargeable Li-ion battery |
|
|
Full charge can print 200~250m (printing density not more than 12.5%) or 80~100mm (printing density not more than 25%) |
||
|
Recommended paper |
FD210, PD150R, PD160R |
|
|
Paper width |
80mm |
|
|
Paper thickness |
60～80μm |
|
|
Paper roller diameter |
≤50mm |
|
|
Paper loading |
Easy loading mechanism |
|
|
Physical characteristics |
Working condition |
-10°C~50°C , 20%~85%RH |
|
Storage condition |
-20°C~70°C, 5%~95%RH |
|
|
Dimension |
126*108*68mm |
|
|
Weight |
400g (without paper roll) |
|
|
Reliability |
TPH |
50km (not more than 12.5% printing density)/100 million pulses |
|
Software |
Emulation |
TSC/CPCL compatible command set |
|
Driver |
Windows XP//Win7/Win8/Win10 |
|
Thermal label printers are widely used in various fields, such as in the retail industry to print price labels and inventory management labels. The logistics and warehousing industry prints express package labels, transportation labels and shipping marks. Print production date and shelf life labels in the food industry; The medical industry prints drug labels and information labels.Our 80mm/ 3-inch postage label printer bluetooth is small, fast, does not require ink, and has a relatively low cost.
1.Are you Manufacturer or Trading Company?
We are a professional manufacturer specialized in thermal printer OEM /ODM, we have focused on the printers and printing solutions for 11years.
2.What is the Minimum Order Quantity of thermal printer?
We have no limit for MOQ, so you can even buy only 1 piece, Of course we can offer you a Peite price for large quantity.
3.Can you offer driver/SDK for the printers?
Yes, we are supplying all windows driver, Win 9X/Win ME/Win 2000/WinNT/WinXP/Vista, and compatible with EPSON,SAMSUNG.
4.What language do the printers support?
Our tsc thermal label printer can support multiple language, e.g. English, Spanish, Arabic, Persian, Italian, Portuguese, French, Danish, Polish, Swedish, Vietnamese, German, Chinese, etc.(Customizable)
5.Can I get the product with my request?
OEM and ODM products is available for you, as long as order meet the MOQ. We have engineers for logo and products design, it only need a little extra cost.
Our compact label printer has two connection ports: Bluetooth and Type-C. It can print from both a computer and a mobile phone.
To use it on a mobile phone: Turn on the printer and download the printing app from your phone's app store. Find the Bluetooth connection to the printer and edit the desired content in the app. Text, images, graphics, and barcodes can all be printed.
To use it on a computer: You need to install the driver and then select the corresponding model to print. The driver can be found on the download page.
Xiamen Peite Electronic Technology Co., Ltd. It is a comprehensive factory that covers R&D, mold design, injection molding, SMT assembly and final assembly. The entire process from core components to the final product is fully under our own control.
It eliminates the multiple layers of price hikes by intermediaries and distributors, directly offering the most favorable prices to customers, ensuring quality while having the most competitive prices.
The thermal label printer stickers adopt carbon tape-free technology combined with intelligent power management chips and low-power motherboard design, saving electricity costs while also eliminating a large amount of material costs.
