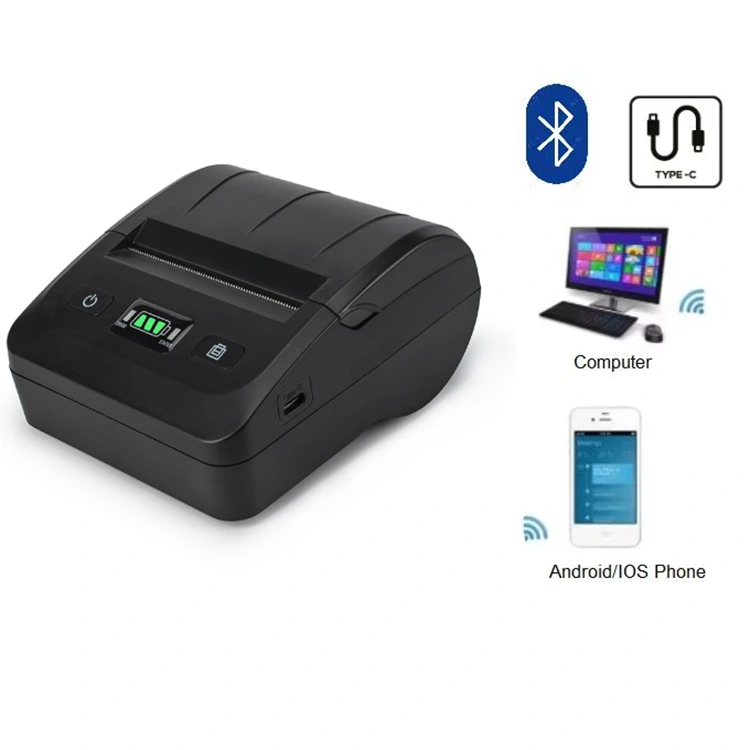

Peite, a thermal printer manufacturer from Xiamen, China, offers portable thermal label printers to global buyers. The products feature both Bluetooth and Type-C connectivity, allowing for use on both computers and mobile phones.
Mobile phone usage: Open the printer app, download the printing app from the app store, connect to the printer via Bluetooth, edit the desired content in the app, and then print text, images, graphics, and barcodes.
Computer usage: Install the driver, then select the corresponding printer model to print documents.
Thermal sticker printer is becoming more and more popular in our daily life. More and more people choose to print 80mm label paper instead of 58mm ones because the paper is wider and can print more and richer content. Thermal printers are compatible with multiple systems, such as Mac and windows, and also support printing using various software. Users can freely edit text, pictures, graphics and barcodes, and print clearly.
|
ITEM |
Parameter |
|
|
Printing |
Printing method |
Thermal printing |
|
Resolution |
203dpi, 8dots/mm,576dot |
|
|
Printing speed |
90mm/s |
|
|
Valid printing width |
72mm |
|
|
Interface |
Bluetooth (Android + IOS), Type-c |
|
|
Power saving |
Sleep mode |
YES |
|
Character Set |
Font |
ASCII:9×17,12×24; Multiple code pages support |
|
Barcode Symbologies |
1D |
UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, |
|
CODEBAR, CODE128, CODE93 |
||
|
2D |
QR code |
|
|
Graphics |
|
supports bitmap printing with different density and user defined bitmap printing (Max. 40K for per bitmap, and Max. 64K for total) |
|
Detection |
Sensors |
Paper out detection |
|
LED indicator |
ERROR |
Red |
|
STATUS |
Blue |
|
|
Power / Charging |
Green |
|
|
Charging |
Charger |
1) 5V/1A in Adapter, |
|
2) 5V/500mA in computer USB connector |
||
|
Battery |
2600mAh/3.7V rechargeable Li-ion battery |
|
|
Full charge can print 200~250m (printing density not more than 12.5%) or 80~100mm (printing density not more than 25%) |
||
|
Recommended paper |
FD210, PD150R, PD160R |
|
|
Paper width |
80mm |
|
|
Paper thickness |
60～80μm |
|
|
Paper roller diameter |
≤50mm |
|
|
Paper loading |
Easy loading mechanism |
|
|
Physical characteristics |
Working condition |
-10°C~50°C , 20%~85%RH |
|
Storage condition |
-20°C~70°C, 5%~95%RH |
|
|
Dimension |
126*108*68mm |
|
|
Weight |
400g (without paper roll) |
|
|
Reliability |
TPH |
50km (not more than 12.5% printing density)/100 million pulses |
|
Software |
Emulation |
TSC/CPCL compatible command set |
|
Driver |
Windows XP//Win7/Win8/Win10 |
|
Handheld barcode label printer is a machine that uses thermal paper for printing. Its working principle lies in the fact that a heated semiconductor component is installed on the print head. When the print head is heated and comes into contact with the thermal paper, it can print out patterns, text, etc. The same logic circuit that controls the heating element also controls the paper feed, thus enabling the printing of graphics on the entire label or paper.
We are a supplier of sticker thermal printers in China, selling directly from the factory at low prices. We can also provide ODM/OEM customization services. The color, logo and packaging of the printers can all be customized. In the after-sales process, we have professional engineers to provide program modification and various printing technical support for printers. If you are interested in thermal printers, please feel free to contact Peite at any time.
Q: Which formats are supported for import?
A: The import formats supported by the portable mini Bluetooth printer mainly depend on the functions of the mobile phone APP.
Q: Can PDF files be printed?
A: The inability to open and print PDF files is due to the lack of a screen and operating system. However, the PDF content can be printed by using a mobile app or computer software in conjunction.
Q: After connecting the printer, if the phone restarts, do you need to re-pair it?
A: Generally, no. As long as the Bluetooth function of the phone is turned on and the sticker label printer is in standby mode, opening the APP will automatically reconnect.
Q: Does it support connecting to the phone? Does it support Apple (iOS) and Android?
A: Yes, it supports any phone. It can be compatible with smartphones or tablets running Android (Android) and iOS (Apple iPhone/iPad) systems.
