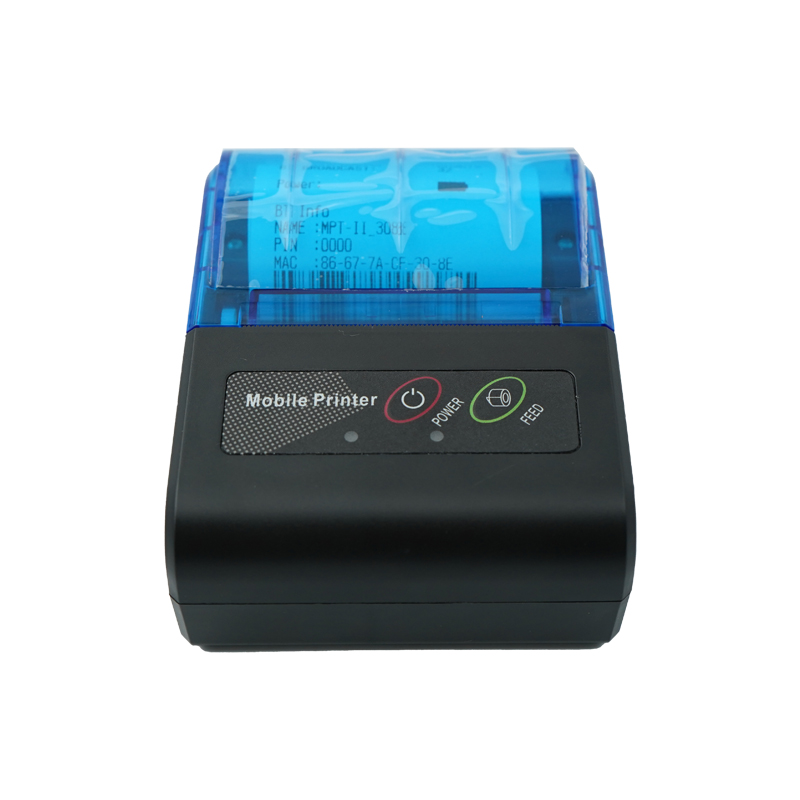

58mm High Speed Thermal Receipt Printer

This 58mm High Speed Thermal Receipt Printer is equipped with an upgraded high-performance printing core, achieving a maximum printing speed of 90mm per second. It can efficiently handle a large number of order receipts, invoices, and transaction labels without any delays or paper jams. It features a built-in 203 DPI high-resolution print head, supporting 384 print dots per line, ensuring extremely clear output of text, numbers, one-dimensional barcodes, QR codes, and custom logos. This makes each receipt in commercial scenarios have standard, legible, and professional appearance. The printer has a wide compatibility design and flexible connection methods, offering multiple interface options such as USB and Bluetooth, to meet the requirements of different devices and systems.

Core Feature

This wholesale 58mm thermal receipt printer is compact and sturdy, equipped with a durable and wear-resistant print head, long-lasting and a large-capacity battery, ensuring stable and consistent printing performance during long-term commercial use. This device is widely applicable to various scenarios such as retail stores, supermarkets, restaurants, cafes, food trucks, grocery stores, vending machines, and small business cash registers, perfectly meeting the needs of daily receipts, orders, and bill printing. The 58mm high-speed thermal receipt printer has passed CE, FCC and RoHS certifications, featuring stable quality, low power consumption and high security performance. It is an economical and practical printing device with high value for money, suitable for retail purchases as well as wholesale bulk orders, and is an ideal choice for global business buyers seeking reliable POS printing equipment.

Product Specifications

ITEM		Parameter
Printing	Printing method	Thermal printing
	Resolution	203dpi, 8dots/mm
	Printing speed	90mm/s
	Valid printing width	48mm
	Interface	Bluetooth (Android + IOS), Type-c
Power saving	Sleep mode	YES
Character Set	Font	ASCII:9×17,12×24; Multiple code pages support
Barcode Symbologies	1D	UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF,
		CODEBAR, CODE128, CODE93
	2D	QR code
Graphics		supports bitmap printing with different density and user defined bitmap printing (Max. 40K for per bitmap, and Max. 64K for total)
Detection	Sensors	Paper out detection
LED indicator	ERROR	Red
	STATUS	Blue
	Power / Charging	Green
Charging	Charger	1) 5V/1A in Adapter,
		2) 5V/500mA in computer USB connector

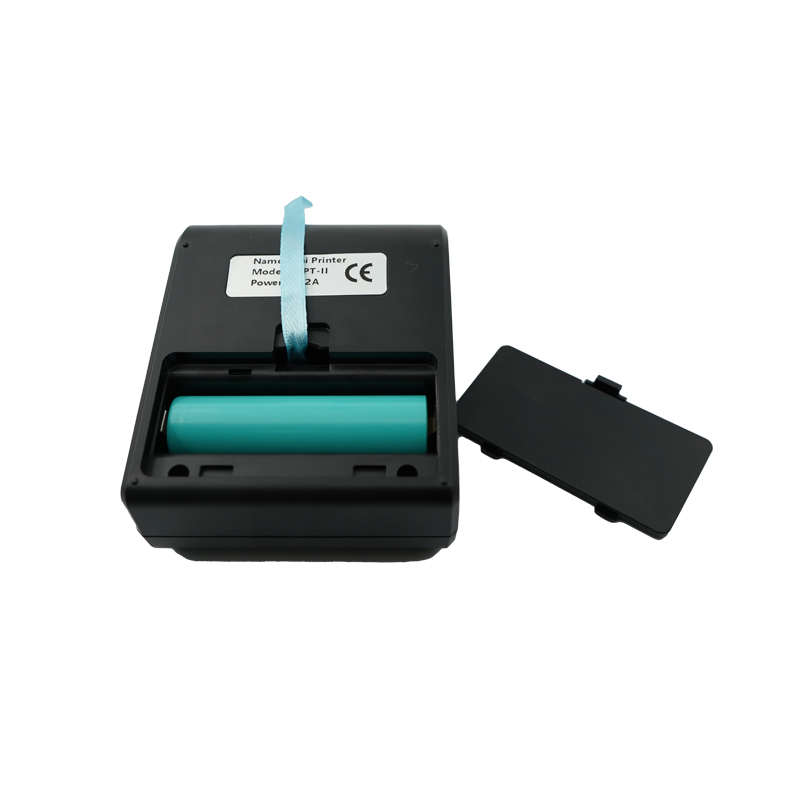

	Battery	2000mAh/3.7V rechargeable Li-ion battery
		Full charge can print 200~250m (printing density not more than 12.5%) or 80~100mm (printing density not more than 25%)
	Recommended paper	FD210, PD150R, PD160R
	Paper width	58mm
	Paper thickness	60～80μm
	Paper roller diameter	≤50mm
	Paper loading	Easy loading mechanism
Physical characteristics	Working condition	-10°C~50°C , 20%~85%RH
	Storage condition	-20°C~70°C, 5%~95%RH

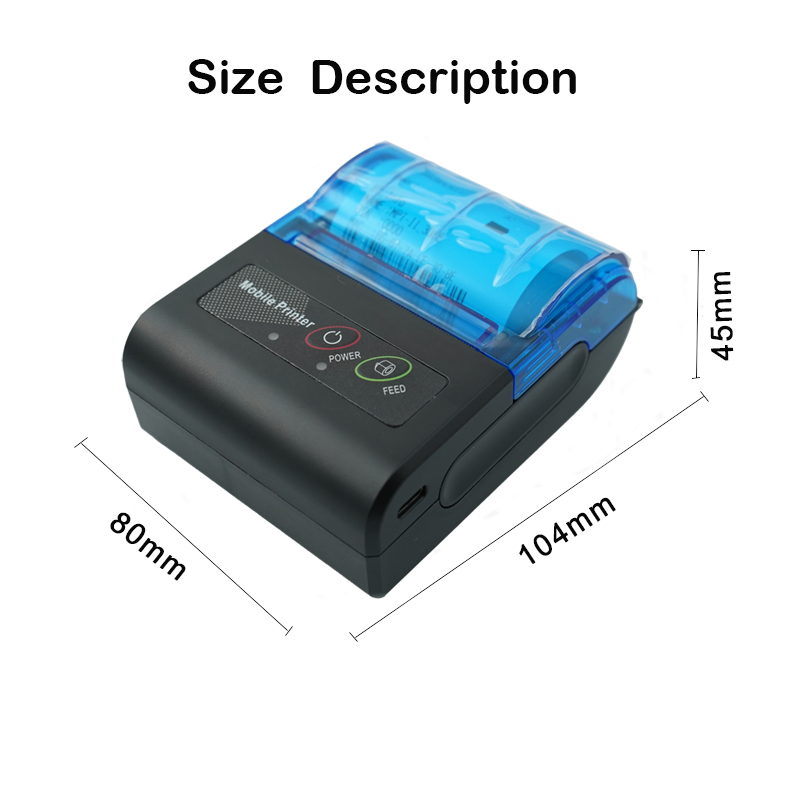

	Dimension	150*110*65mm
	Weight	197g (without paper roll)
Reliability	TPH	50km (not more than 12.5% printing density)/100 million pulses
Software	Emulation	ESC/POS compatible command set
	Driver	Windows XP//Win7/Win8/Win10

Common Fault Troubleshooting

1. Only blank paper is used without any writing: 90% of the cases are due to the wrong orientation of the thermal paper. Swap the paper roll direction and try again.

2. The print is very faint and the characters are blurry: ① The battery is low. Please charge it; ② The print head is dirty. Clean it with an alcohol cotton swab; ③ The thermal paper is of poor quality.

3. Bluetooth cannot find the device: Confirm that the printer is turned on; Turn off the Bluetooth on your phone and restart it; Shut down and restart the printer; Confirm that it is not being occupied and connected by another phone.

4. Self-check can print, but the mobile phone software cannot print: The mobile phone Bluetooth is just paired. You need to re-select the printer in the settings of the printing APP.

5. The red light keeps flashing: Check if the paper tray cover is tightly pressed; Check if there is a shortage of paper; Check if it is overheated and power off for cooling.

6. Paper jam: Open the upper cover, gently pull the paper in the direction of the paper exit. Do not pull it hard as it may damage the print head.

FAQ

Q1: What paper sizes does this 58mm thermal printer support?

A1: This printer is specifically designed for standard 58mm wide thermal paper rolls, and can perfectly fit most common 58mm receipts available on the market. No additional paper size adjustments are required, fully meeting the needs of daily business printing for receipts, invoices, and checkout forms.

Q2: Do I need ink, toner, or ribbons when printing?

A2: No ink, toner, or ribbons are needed. Using direct thermal printing technology, clear images are generated through the thermal reaction on the special thermal paper, significantly reducing daily maintenance costs and avoiding ink leakage and hassle with replacing consumables.

Q3: What connection methods does this 58mm printer offer?

A3: Our 58mm high-speed receipt printer supports multiple connection methods, including USB and Bluetooth. It can be stably connected to desktop computers, laptops, Android and iOS phones, cash registers, and POS terminals, enabling both wired and wireless flexible printing, suitable for different usage scenarios.

Q4: Is this thermal printer compatible with mainstream systems and software?

A4: Yes. The device is fully compatible with Windows, Linux, Android, and iOS systems, supporting the standard ESC/POS command set. It works well with most retail, catering, supermarket, and takeout ordering management software, featuring plug-and-play and easy operation.

Q5: What is the printing speed of this 58mm receipt printer?

A5: With an upgraded printing core, the printer can reach a maximum printing speed of 90mm per second. It supports fast continuous printing, effectively avoiding paper jams and printing delays during peak checkout periods, significantly enhancing business efficiency.

Q6: What scenarios is this thermal printer suitable for?

A6: Widely applicable in various commercial scenarios, including retail stores, supermarkets, restaurants, cafes, food trucks, grocery stores, self-service terminals, and small business cash registers. It is an ideal printing device for printing transaction receipts, order forms, and payment vouchers.

Q7: Is the installation and use of this printer convenient for beginners?

A7: Extremely convenient. The printer features a user-friendly automatic paper feeding design, allowing for paper replacement in just a few seconds. The product comes with complete installation drivers and detailed operation manuals. Installation and daily use do not require professional skills.

Q8: Does the printer support printing barcodes and QR codes?

A8: Yes. The printer is equipped with a 203DPI high-resolution print head, capable of clearly printing text, numbers, one-dimensional barcodes, and QR codes. The printed patterns and characters are clear and neat, meeting the standards for commercial receipt printing.
