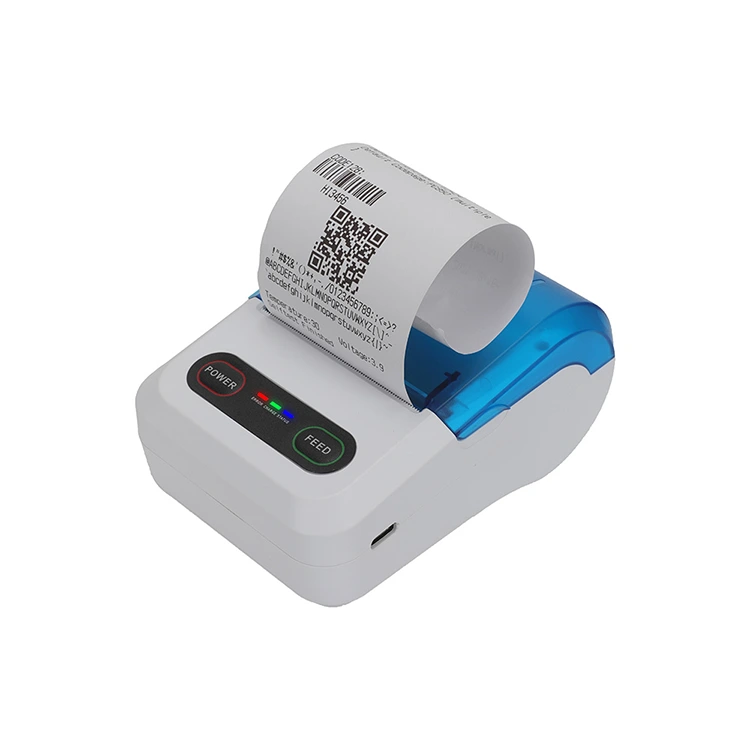

Peite is a professional factory and an OEM manufacturer of thermal printers. Our 58mm Thermal Receipt Printer Bluetooth supports Bluetooth customization, boasts high printing efficiency, and excellent performance.
The printer's print command is ESC/POS, using specific escape sequences to control print format and behavior.
ESC a N is used to set the printer's operating mode. N can be an integer between 0 and 3, representing different print modes such as normal printing, transparent mode, skip black marks, etc.
ESC c is used to clear the print buffer, thereby resetting the printer state.
GS v N M is used to set the font size, where N is the horizontal magnification factor and M is the vertical magnification factor.
|
ITEM |
Parameter |
|
|
Printing |
Printing method |
Thermal printing |
|
Resolution |
203dpi, 8dots/mm |
|
|
Printing speed |
90mm/s |
|
|
Valid printing width |
48mm |
|
|

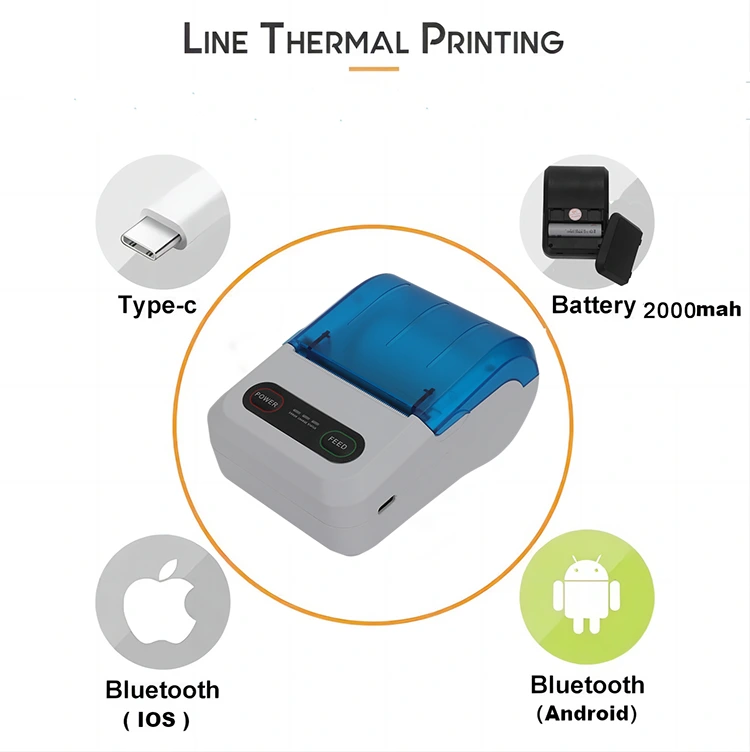

Interface |
Bluetooth (Android + IOS), Type-c |
|
|
Power saving |
Sleep mode |
YES |
|
Character Set |
Font |

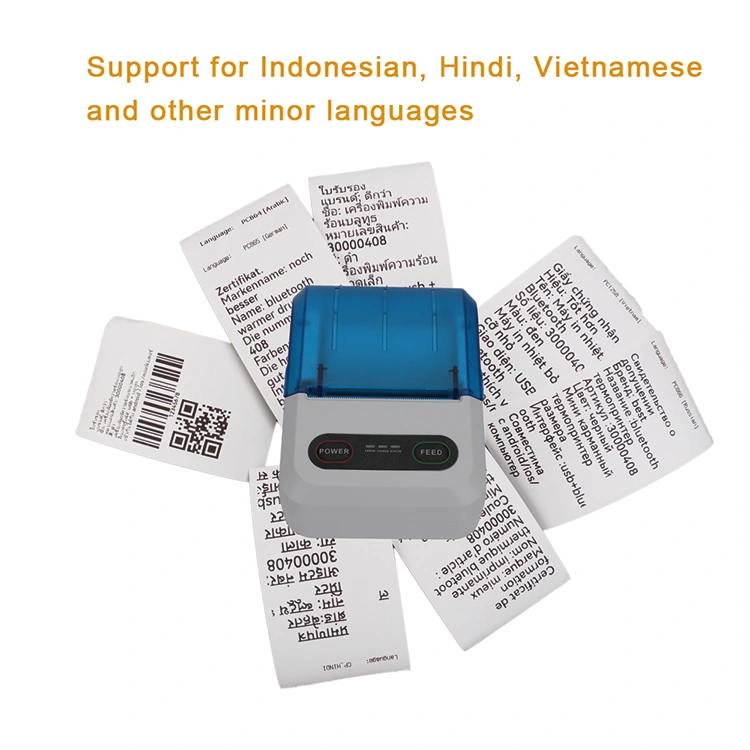

ASCII:9×17,12×24; Multiple code pages support |
|

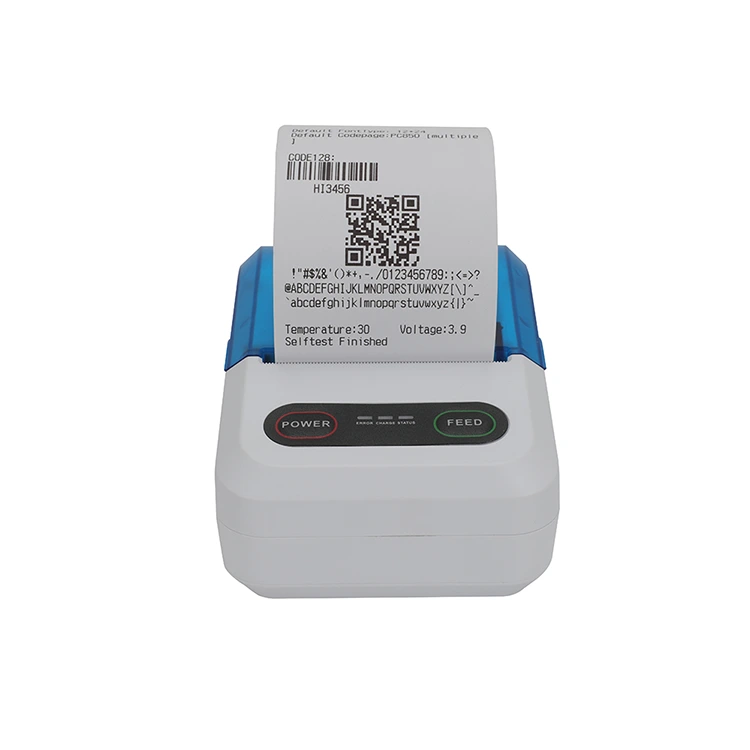

Barcode Symbologies |
1D |
UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, |
|
CODEBAR, CODE128, CODE93 |
||
|
2D |
QR code |
|
|
Graphics |
|
supports bitmap printing with different density and user defined bitmap printing (Max. 40K for per bitmap, and Max. 64K for total) |
|
Detection |
Sensors |
Paper out detection |
|
LED indicator |
ERROR |
Red |
|
STATUS |
Blue |
|
|
Power / Charging |
Green |
|
|
Charging |
Charger |
1) 5V/1A in Adapter, |
|
2) 5V/500mA in computer USB connector |
||
|

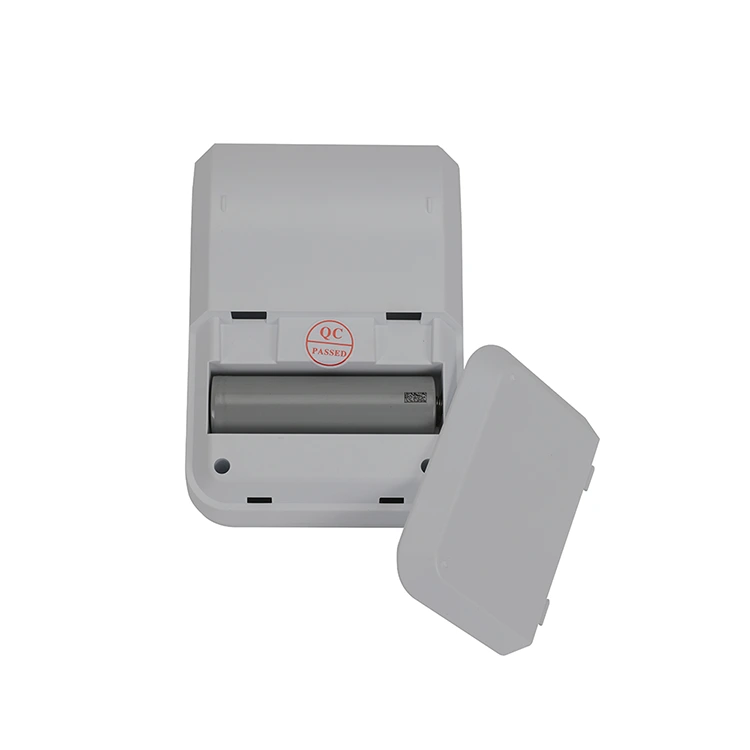

Battery |
1500mAh/8.4V rechargeable Li-ion battery |
|
|
Full charge can print 200~250m (printing density not more than 12.5%) or 80~100mm (printing density not more than 25%) |
||
|
Recommended paper |
FD210, PD150R, PD160R |
|
|
Paper width |
58mm |
|
|
Paper thickness |
60～80μm |
|
|
Paper roller diameter |
≤50mm |
|
|
Paper loading |
Easy loading mechanism |
|
|
Physical characteristics |
Working condition |
-10°C~50°C , 20%~85%RH |
|
Storage condition |
-20°C~70°C, 5%~95%RH |
|
|

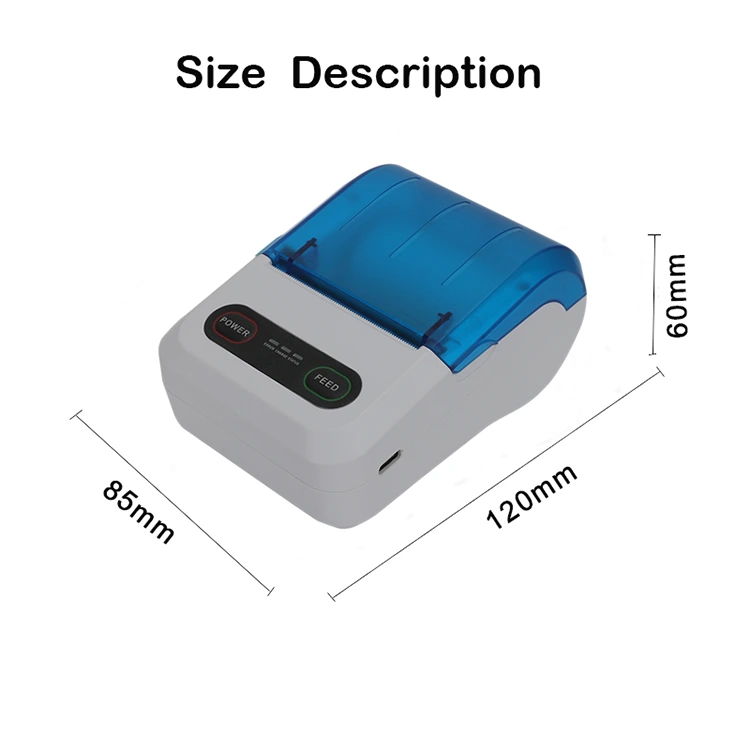

Dimension |
120*82*60mm |
|
|
Weight |
197g (without paper roll) |
|
|
Reliability |
TPH |
50km (not more than 12.5% printing density)/100 million pulses |
|
Software |
Emulation |
ESC/POS compatible command set |
|
Driver |
Windows XP//Win7/Win8/Win10 |
|
Thermal Bluetooth wireless inkless printers are becoming increasingly popular and are widely used in multiple industries such as retail, catering, logistics, and healthcare. The retail industry can use it to quickly print shopping receipts. In the catering industry, it can print orders instantly. In the logistics industry, it can print express delivery labels. In the medical industry, it can print medical records and prescriptions. These application scenarios all demonstrate the high efficiency and practicality of thermal Bluetooth printers.
When choosing a mini thermal printer 58mm manufacturer, you should first clarify where you will use the printer when purchasing it, whether it is for printing labels, receipts or logistics waybills. Xiamen Peite offers a variety of thermal printer models tailored to different scene requirements. Moreover, it is equipped with advanced production facilities, modern production lines, ISO certification, and provides long-term and stable after-sales service.
The rubber wheel is one of the key components for feeding paper. We need to keep its surface clean to prevent the paper from slipping or the characters from becoming blurry.
The thermal paper roll for pocket printers has a width of 58mm. If the paper is too long, it may cause the gears to get stuck or the cover to fail to close properly. If the paper is too wide or too narrow, it may cause the printing to deviate or result in incomplete content.

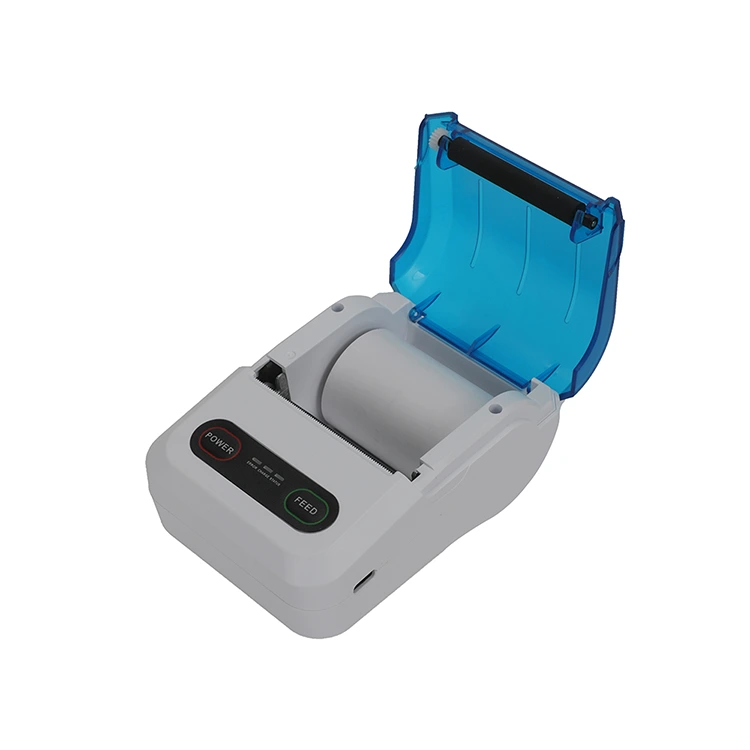

During installation, the smooth and dark side should face the print head. Otherwise, the content cannot be printed.
At the same time, the tape at the end of the paper roll or the bonding area should not be too thick or too wide. Otherwise, it may get caught in the print head roller and cause the machine to get stuck and damage the gears.
Q: What are 203 DPI and 300 DPI?
A: 203 DPI is a standard configuration with approximately 8 dots per millimeter. It is suitable for printing ordinary cash register receipts and takeout lists, with clear text and low cost.
300 DPI is a high-definition configuration with approximately 12 dots per millimeter. It is suitable for printing QR codes, barcodes, complex logos or cosmetic/jewelry labels, with higher scanning recognition rate.
You can customize your own bluetooth thermal printer ios according to your needs, or you can contact Peite and we will offer you reliable solutions.
Q: Why do I hear some strange noises inside the printer?
A: The drive motor rotates the rubber roller. Lack of lubrication or gear breakage can cause the rotation to be unsmooth. Lubricating oil is usually used as an aid.
Q: Why does the printer still feel slightly warm after turning off?
A: This is a normal phenomenon. If it is only slightly warm, it is completely normal. Some circuits on the board are still working and maintaining the clock or storing data.
Q: Why does my printer automatically disconnect from my phone after connecting for a few minutes?
A: The Bluetooth module of the portable wireless mini printer has activated the "sleep mechanism" or "power-saving mode" settings.
