Thermal Label Printer with Led Screen
  • Thermal Label Printer with Led ScreenThermal Label Printer with Led Screen
  • Thermal Label Printer with Led ScreenThermal Label Printer with Led Screen
  • Thermal Label Printer with Led ScreenThermal Label Printer with Led Screen

Thermal Label Printer with Led Screen

In the past, label printers couldn't provide a clear and direct indication of the printer's status. This newly developed Thermal Label Printer with Led Screen by Xiamen Peite Electronic Technology Co., Ltd., featuring intelligent visual operation, high-precision thermal transfer and comprehensive compatibility, has redefined label printing for both home and commercial use. This integrated label printer is specifically designed for printing various commercial and household labels such as food price tags, tag prices, supermarket labels, etc. It eliminates additional operational obstacles, significantly improves your label efficiency, and provides a more intuitive and convenient printing experience.

Most basic thermal label printers rely entirely on mobile phones or computers to preview and adjust printing tasks. Users are almost unable to view the printing status, paper errors or equipment malfunctions in real time, resulting in label waste, work delays and unnecessary operational chaos. Our upgraded thermal label printer with Led screen is equipped with a high-definition LED display, which can solve all of the above problems at once, bringing an unprecedented convenient experience to various labeling operations.

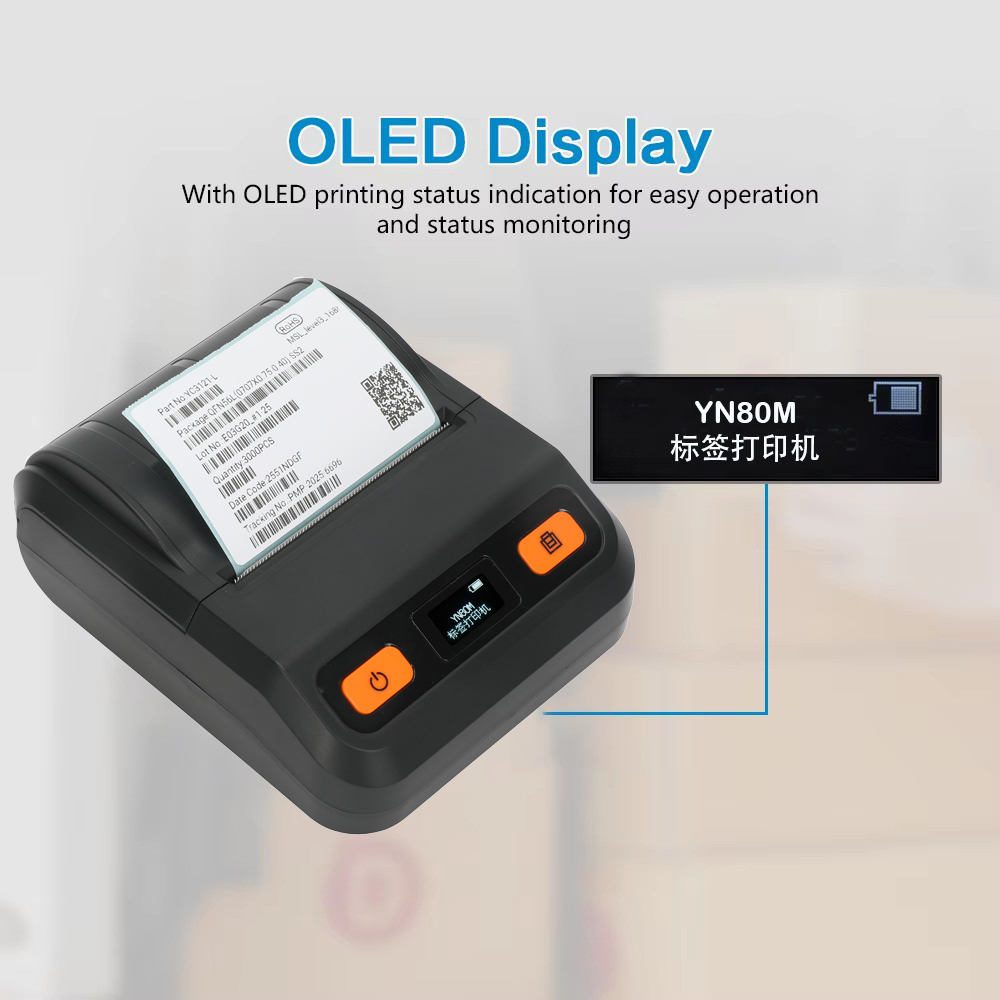

The built-in LED screen serves as an independent intelligent control center. Without the need to connect any smart devices, it enables real-time print preview, display of device status, fault alerts, and parameter adjustments. You can directly view the print mode, battery level, print progress, and connection status on the screen. Common issues such as paper jams, running out of paper, or connection failures will be clearly indicated on the screen, allowing you to quickly troubleshoot the problem within seconds without having to guess. Whether you are working in a busy retail environment or at home organizing items, this visual operating system can significantly reduce learning costs and operational error rates.

Product Features

The 3-inch portable thermal label printer does not require ink and can freely adjust the width. It supports the printing of various types of labels. The built-in display can show the remaining battery level, whether it is Bluetooth connected, whether it is for label printing or ticket printing, and supports the free switching of label and ticket printing, greatly improving work efficiency. Users can directly edit content, switch templates, adjust print density and quantity on the device, achieving true one-click printing. For complex custom labels, it can also be perfectly combined with a mobile app and computer software to achieve one-click editing and wireless printing, and the screen progress can be synchronously displayed.

Product Specifications

ITEM Parameter
Printing Printing method Thermal printing
Resolution 203dpi, 8dots/mm,576dot
Printing speed 90mm/s
Valid printing width 72mm
Interface Bluetooth (Android + IOS), Type-c
Power saving Sleep mode YES
Character Set Font ASCII:9×17,12×24; Multiple code pages support
Barcode Symbologies 1D UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF,
CODEBAR, CODE128, CODE93
2D QR code
Graphics supports bitmap printing with different density and user defined bitmap printing (Max. 40K for per bitmap, and Max. 64K for total)
Detection Sensors Paper out detection
LED indicator ERROR Red
STATUS Blue
Power / Charging Green
Charging Charger 1) 5V/1A in Adapter,
2) 5V/500mA in computer USB connector
Battery 2600mAh/3.7V rechargeable Li-ion battery
Full charge can print 200~250m (printing density not more than 12.5%) or 80~100mm (printing density not more than 25%)
Recommended paper FD210, PD150R, PD160R
Paper width 80mm
Paper thickness 60~80μm
Paper roller diameter ≤50mm
Paper loading Easy loading mechanism
Physical characteristics Working condition -10°C~50°C , 20%~85%RH
Storage condition -20°C~70°C, 5%~95%RH
Dimension 126*108*68mm
Weight 400g (without paper roll)
Reliability TPH 50km (not more than 12.5% printing density)/100 million pulses
Software Emulation TSC/CPCL compatible command set
Driver

Windows XP//Win7/Win8/Win10

Core Function

This 80mm bluetooth label and receipt printer supports various common label widths and is suitable for almost all daily labeling scenarios. It can easily print transportation labels, product price tags, inventory classification labels, warehouse barcode labels, food expiration date labels, cable labels, and household classification stickers. The Peite label software provides hundreds of free editable templates, allowing users to customize text size, spacing, and patterns, helping users create exclusive professional labels for brand display and standardized management. Moreover, it supports direct switching between label and ticket printing modes on the display, making the operation simple and convenient.

Why choose the Peite thermal label printer with LED display?

Most basic thermal label printers on the market only come with simple indicator lights. Different from traditional models, our thermal label printer with LED display is equipped with a real-time visual monitoring system, which can solve problems such as Bluetooth disconnection, low battery power, and paper shortage. It clearly displays battery power, Bluetooth connection status, remaining label paper quantity, printing mode, and system fault alerts. This significantly reduces printing errors and makes it the most suitable portable thermal label printer for long-term daily use.
