2D Barcode Scanners are being used more and more in both work and daily life, such as for package scanning, supermarket scanning, and item pickup code scanning, etc. When choosing a scanner to purchase, you need to consider the type of barcode to be scanned (one-dimensional, two-dimensional or QR code), whether it is wireless or wired connection, the scanning distance (short, medium or long), and whether it can be compatible with your existing scanning system or integration system. Xiamen Peit is a manufacturer of 2D scanning guns, offering a variety of styles and types of scanning guns. Welcome to inquire.

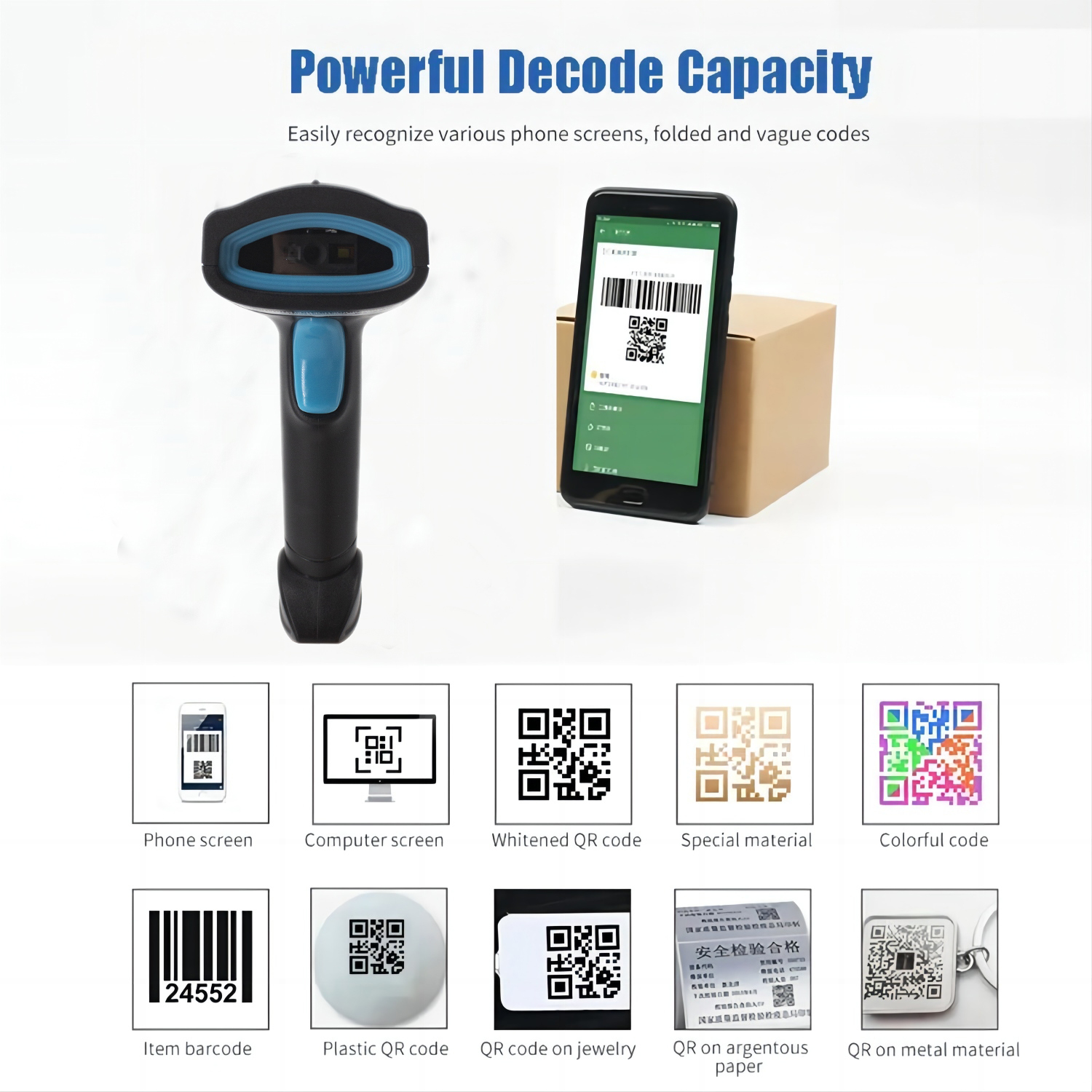

It adopts an advanced two-dimensional image scanning engine, which can quickly and accurately read 1D/2D barcodes, QR codes, barcodes on paper screens, as well as blurry barcodes.
Equipped with a high-strength anti-drop shell and a sturdy scanning window, it can effectively resist daily collisions and wear and tear, ensuring long-term stable use.

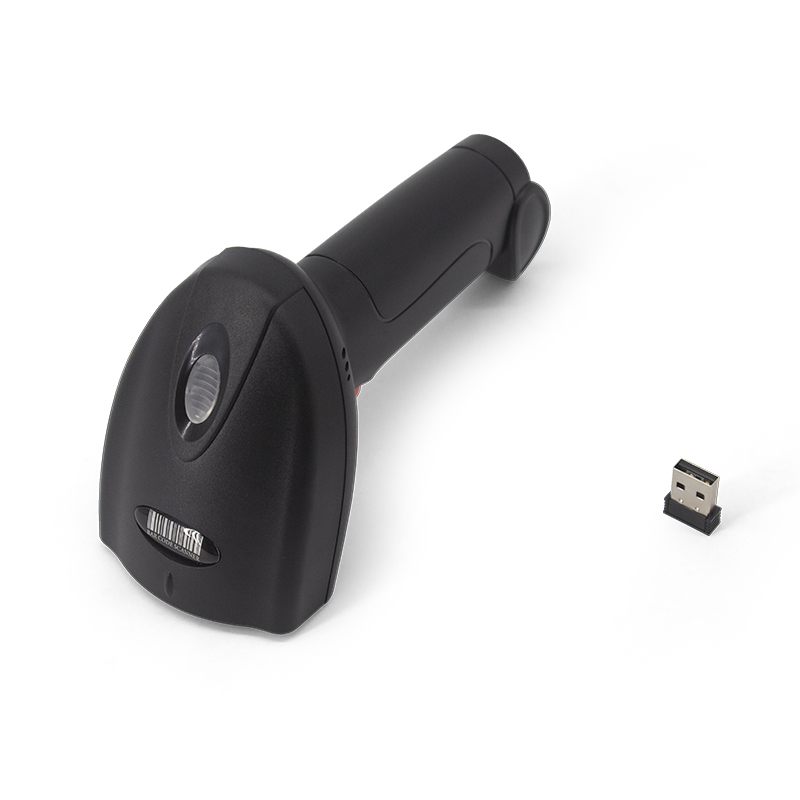

Supports three connection modes: USB wired/2.4G wireless/Bluetooth. Equipped with standard data cables and wireless receivers, plug-and-play, with strong compatibility.

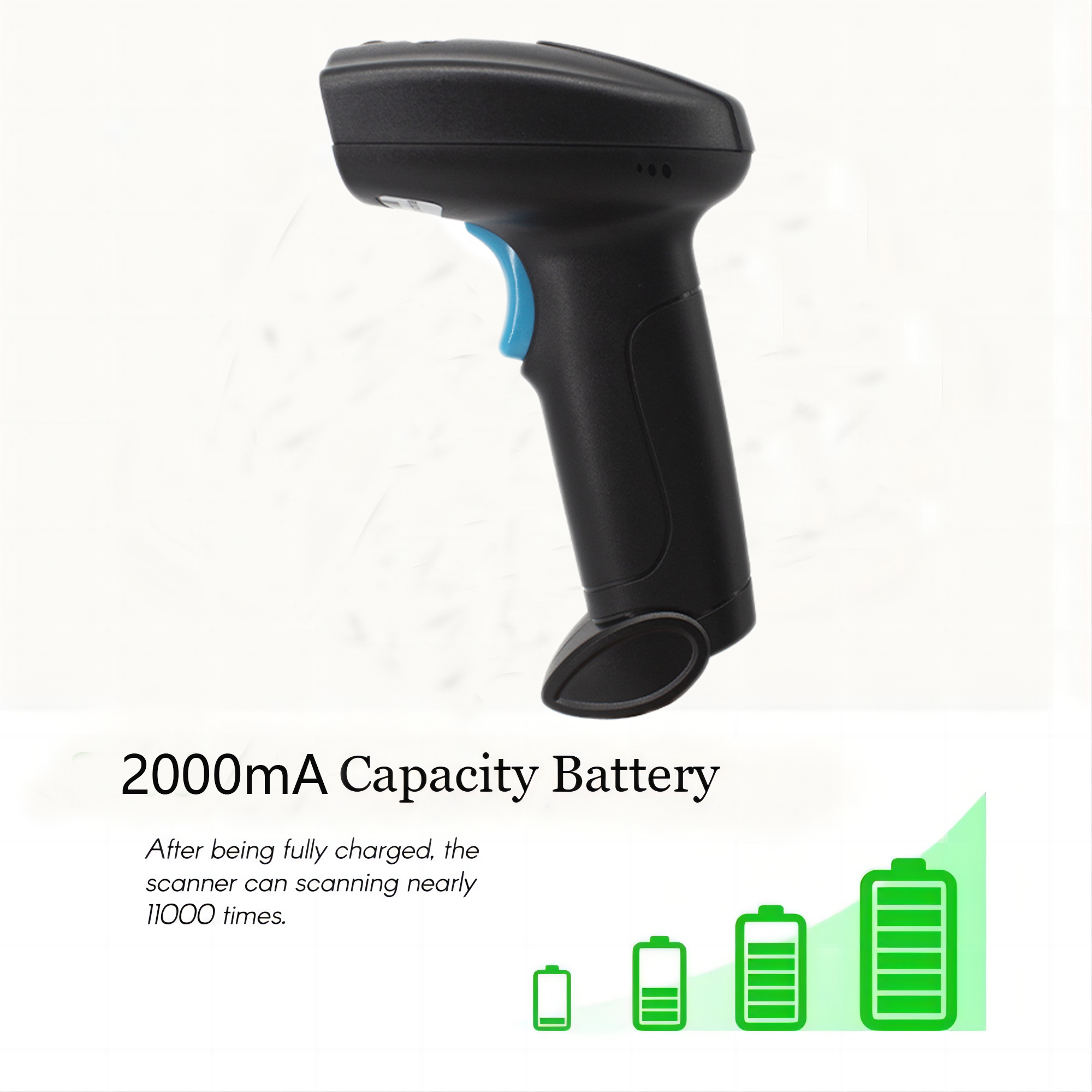

Built-in large-capacity rechargeable battery, long battery life, supports long-term continuous scanning, with low battery reminder and charging protection functions.
Standardly equipped with charging cable, data cable, wireless receiver, user manual and stand. Ready to use upon opening the box, convenient for installation and placement.
Qr and barcode scanners Compatible with Windows, Android and iOS systems, widely used in supermarkets, retail, logistics, warehousing, catering and medical industries.
| The input voltage | DC 5 volts ± 0.25 volts | |
| Power. | 1.60 watts (working);0.40 watts (standby). | |
| Current. | 320 mAh (working);80 mAh (standby)5 x/-10% VDC s 350 mA | |
| Resolution. | 752 × 480 pixels | |
| Scan angle | ± 60 degrees, ± 40 degrees, ± 42 degrees (left, right, back, round). | |
| The type of decoding | 1d:UPC-A, UPC-E1, UPC-E0, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post, China Finance, GS1 DataBar (formerly RSS) variants | |
| 2D:PDF417, MicroPDF417, QR code, DataMatrix | ||
| How to prompt | Buzzer,LED | |
| The system interface | RS-232 serial port;USB keyboard;USB imaginary serial port | |
| How it was triggered | Manual. | |
| Appearance size | Long × width× height: 160mm × 66mm × 90mm | |
| Weight. | 128g(without cable). | |
| Cable standard | Straight line,1.65 meters | |
| The type of interface | One-in-one line | |
| Shell material | PC+ABS | |
| Temperature | 0°C ~ 50°C (working); -40°C ~ 60°C (storage) | |
| Humidity | 5% to 95%(no condensation). | |
| How to set it up | Manual (scan to set barcodes in turn) | |
| Resolution | 3.5mil(high density series),1mil s 0.0254mm | |
| Read depth of view | 3.5mil:Code128(9 characters). | 15mm—35mm |
| 5mil:Code39(20 characters). | 33mm—77mm | |
| 13mil:UPC (12 characters). | 17mm—150mm | |
| 20mil:Code39(5 characters). | 55mm—195mm | |
| 6.7mil:PDF417(20 characters). | 25mm—90mm | |
| 10mil:DM(20 characters). | 15mm—115mm | |
| 20mil:QR(20 characters). | 9mm—175mm | |
| Level of security |
EMC Electromagnetic Compatibility:EN55022,EN55024Electrical safety:EN60950-1Waterproof and dust-proof seal rating:IP54Seismic capacity:5 or more times 1.5 meters of height fell to the cement floor |
|
In the warehousing and logistics area, staff members carry qr code code scanner and move among the shelves, quickly scanning the barcodes of the boxes. The system updates the inventory and location information in real time. Each scan precisely records the flow of goods, making the complex warehousing management clear and efficient.
In the courier stations, scanning readers are indispensable tools. Couriers scan the shipping labels of packages one by one to confirm the collection, transfer, and delivery status, and the data is simultaneously uploaded to the backend. Whether it's large packages or small parcel items, the scanning gun supports the smooth operation of the entire logistics chain in an efficient and accurate manner.
1.Are you a manufacturer? What is the MOQ?
We are the professional thermal printer and 1d 2d barcode scanner manufacturer with full production line. Sample order 1-2 pcs printers are also welcomed.
2.Can you do customize?and how about add our logo?
Yes, ODM/OEM are available. MOQ: 100pcs, we can silk print your logo for free.
3.Can you provide driver and software?
Yes, we can support the driver of Mac/Ios/Windows, SDK, android/ios testing app.
4.Which barcodes can be supported for scanning?
Our barcode scanner supports 1D+2D barcode and QR code scanning, and it is a wireless scanner. It can be connected and used with computers, mobile phones, tablets, POS systems and integrated systems.
