Peite is a reliable Bluetooth Barcode Scanner supplier. Our products offer high cost-performance and utilize built-in optical sensors to convert information from barcodes or QR codes into electrical signals, which are then transmitted to the appropriate devices via Bluetooth.
It employs advanced image processing algorithms and high-speed data transmission technology, enabling it to read barcode information quickly and accurately. Due to its convenience and efficiency, it has been widely used across various industries.
Convenient to carry: Generally, wireless handheld barcode scanners are small in size and light in weight, allowing them to be carried and used anytime and anywhere without being restricted by distance, which is very convenient.
High efficiency and accuracy: It adopts advanced image processing methods and data transmission approaches to scan various barcodes efficiently and accurately.
Wide application: Due to its practicality, it is widely used in various industries such as warehousing systems, medical fields, retail supermarkets, and education.
|
The input voltage |
DC 5 volts ± 0.25 volts |
|
|
Power. |
1.60 watts (working);0.40 watts (standby). |
|
|
Current. |
320 mAh (working);80 mAh (standby)5 x/-10% VDC s 350 mA |
|
|
Resolution. |
752 × 480 pixels |
|
|
Scan angle |
± 60 degrees, ± 40 degrees, ± 42 degrees (left, right, back, round). |
|
|
The type of decoding |
1d: UPC-A, UPC-E1, UPC-E0, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post, China Finance, GS1 DataBar (formerly RSS) variants |
|
|
2D: PDF417, MicroPDF417, QR code, DataMatrix |
||
|
How to prompt |
Buzzer,LED |
|
|
The system interface |
RS-232 serial port;USB keyboard;USB imaginary serial port |
|
|
How it was triggered |
Manual. |
|
|

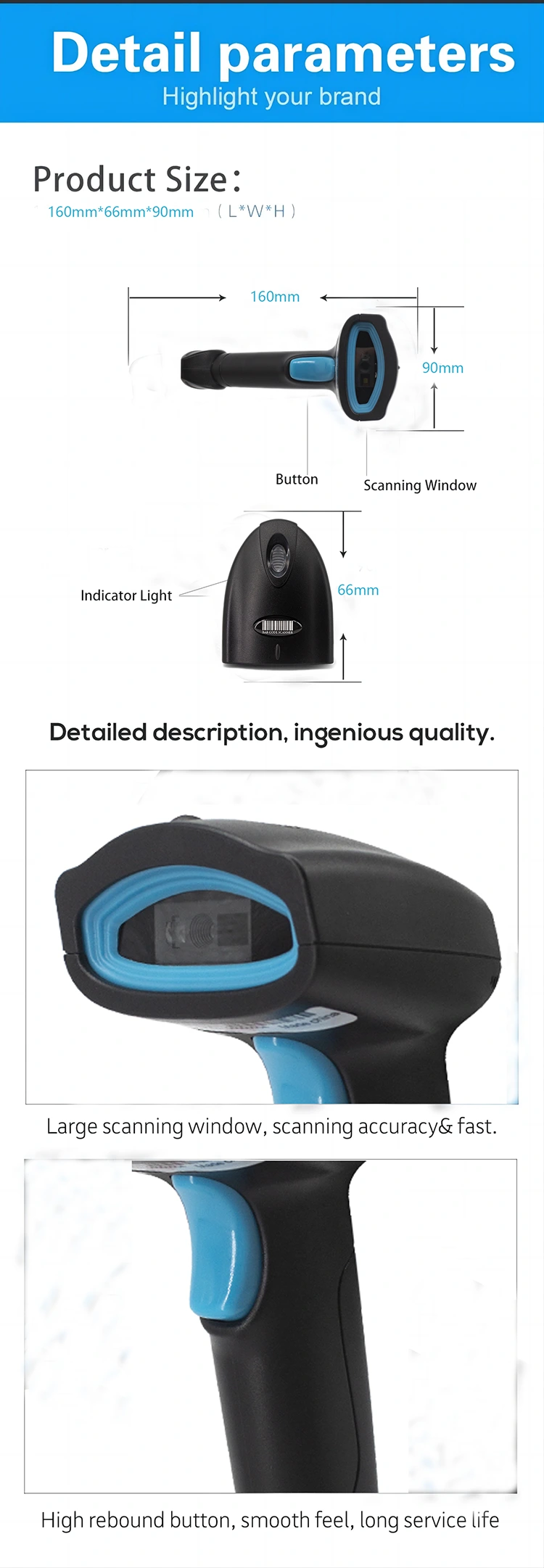

Appearance size |
Long × width× height: 160mm × 66mm ×90mm |
|
|
Weight. |
128g(without cable). |
|
|
Cable standard |
Straight line,1.65 meters |
|
|
The type of interface |
One-in-one line |
|
|
Shell material |
PC+ABS |
|
|
Temperature |
0°C ~ 50°C (working);-40°C~ 60°C (storage) |
|
|
Humidity |
5% to 95%(no condensation). |
|
|
How to set it up |
Manual (scan to set barcodes in turn) |
|
|
Resolution |
3.5mil(high density series),1mil s 0.0254mm |
|
|
Read depth of view |
3.5mil:Code128(9 characters). |
15mm—35mm |
|
5mil:Code39(20 characters). |
33mm—77mm |
|
|
13mil:UPC (12 characters). |
17mm—150mm |
|
|
20mil:Code39(5 characters). |
55mm—195mm |
|
|
6.7mil:PDF417(20 characters). |
25mm—90mm |
|
|
10mil:DM(20 characters). |
15mm—115mm |
|
|
20mil:QR(20 characters). |
9mm—175mm |
|
|
Level of security |
EMC Electromagnetic Compatibility:EN55022,EN55024 Electrical safety:EN60950-1 Waterproof and dust-proof seal rating:IP54 Seismic capacity:5 or more times 1.5 meters of height fell to the cement floor |
|
The casing of the bluetooth qr code scanner is waterproof and dustproof, made of sturdy materials that are not easily damaged, and features low power consumption, making it suitable for use in different temperature environments. All the internal components inside are reinforced and buffered to ensure they are not easily damaged during use.
The material of the wireless barcode reader is an optical glass that has been polished and coated to form the scanning lens. The battery is made by winding or laminating lithium polymer as the material, with strong power storage capacity.
After precise processing and assembly, the entire device has a clear optical path and is also wear-resistant. New and old customers are welcome to send inquiries to learn more about the manufacturing details.
1.Package include:bluetooth barcode reader,usb cable,manuals.
2.Size of the package box:20*10.5*8cm, 0.3kg.
3.Size of one carton (50pcs):55*42*44cm,13.8kg/ctn
4.We can ship out via DHL,FEDEX,UPS or other air shipping.
The mobile barcode scanner establishes a stable point-to-point data transmission channel with the smart terminal through the built-in Bluetooth wireless communication module, using the 2.4GHz ISM frequency band. During the connection process, first make the scanner gun accessible, then search for it on the mobile phone or computer for pairing verification. Once the pairing is successful, the scanned code can be immediately transmitted without the need for plugging in a cable. Within a certain range, it can freely move.
