Desktop Barcode Scanner

Desktop Barcode Scanner

As a manufacturer with comprehensive production capabilities and support for customization, Peite offers both handheld and desktop barcode scanners. Compared to handheld barcode scanners, desktop barcode scanners are better suited for scanning smaller barcodes. They free up your hands, allowing for quick and easy scanning and leaving, making them more convenient and faster. With 11 years of manufacturing experience, we offer affordable prices. Please feel free to contact us.

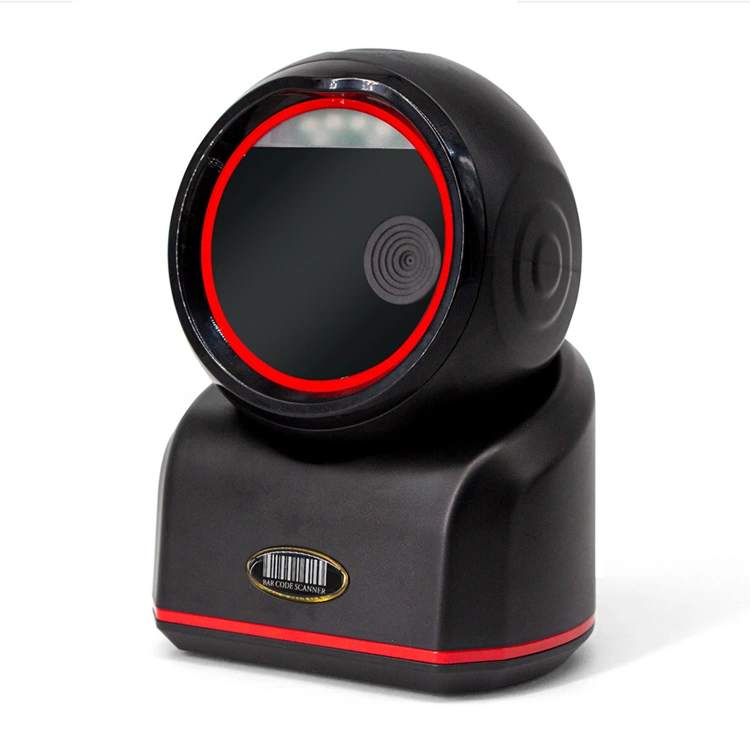

The X2 is a high-performance Desktop Barcode Scanner designed and manufactured by Peite, and we will offer it to you at a factory-direct price. The product features a global exposure design, fast image decoding and high-precision reading capabilities, effectively resists ambient light interference, and boasts multi-functional scanning, fast scanning speed, strong reading performance, and high accuracy. It is widely used in industries such as shopping malls, supermarkets, and apparel retail.




Product Specifications


Model:

X2

Code reading mode:

CMOS (GlobalExposure)

Pixels:

640*480

Light source:

617nm red LED

Scan Mode:

Omni-induction trigger/manual/continuous

Minimum resolution:

0.127mm(5mil) @Code 39, PCS=90%

Usage environment

0°C-50°C

Storage Temperature:

-20℃~+70℃

Storage humidity:

5%-95% non-condensing

Ambient lighting

0~8,600Lux (fluorescent)0~100,000Lux(daylight)

Input voltage

5VDC±10%

Operating current

175mA typical

Depth of Field Angle

30° V x 48° H (vertical)

Field of view:

48° (H) x 30° (V)

Interface support

USB, USB-COM, RS-232 (optional)

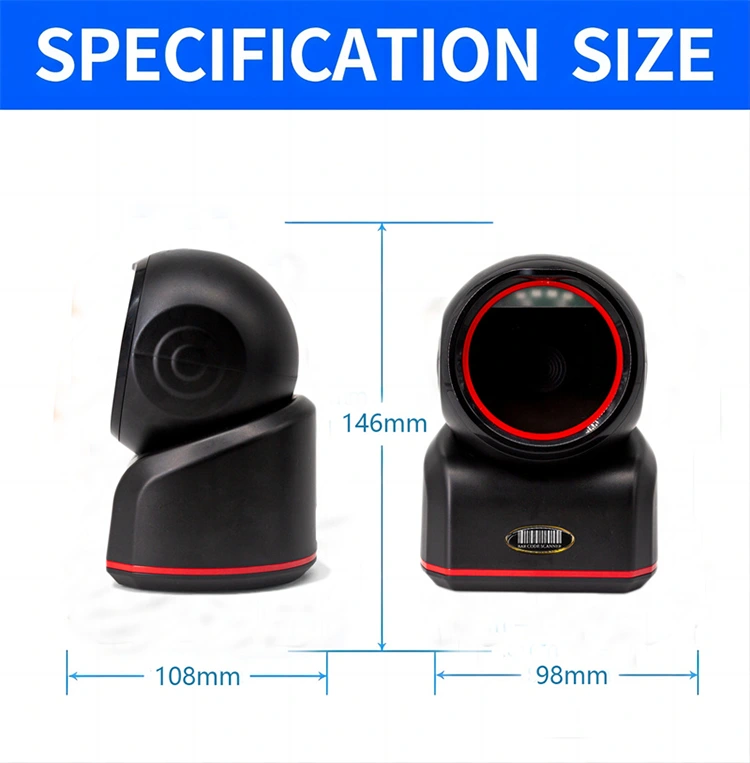

Dimensions

146mm×108mm×98mm

Packing size:

160mm×115mm×115mm

Product Weight

344g (excluding packaging and accessories)

Gross weight

519g

Cable Standards:

Straight line: 1 .8m

Color:

Black/White

Material:

ABS+PC

Sealing class

IP54

Drop height

1.5m

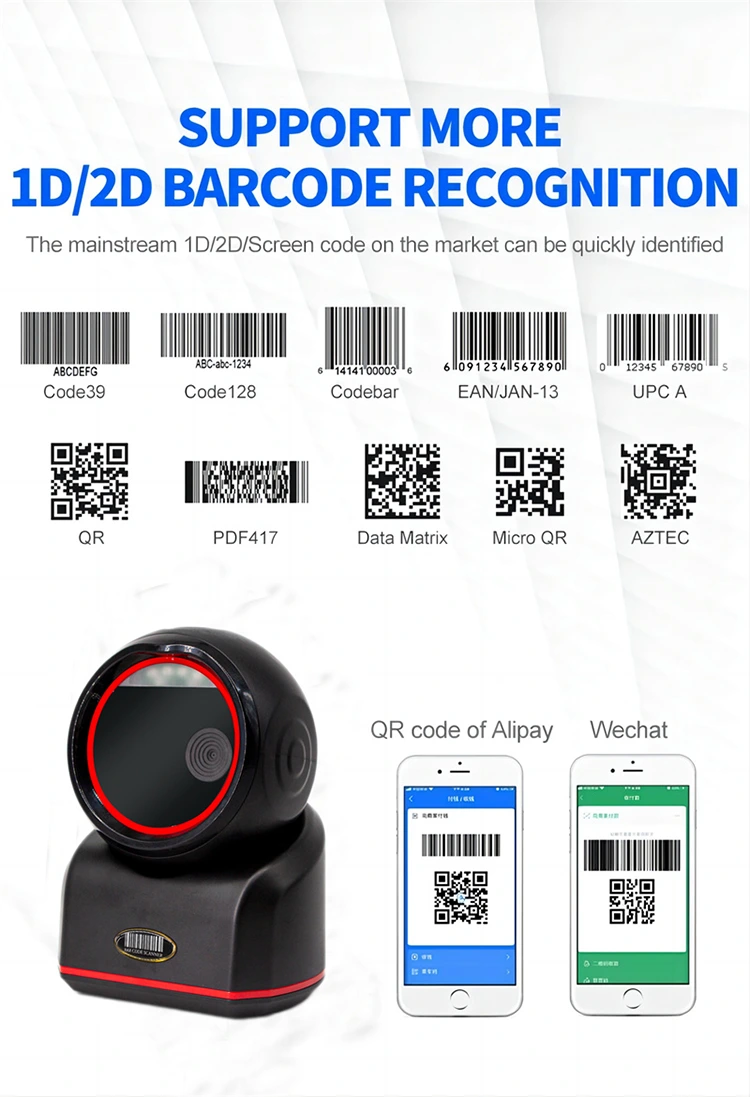

Decoding capability

1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS

2D: QR, Data Matrix (DM), PDF417, supports mobile phone screen reading



Advantages


Convenient to carry: Generally, omnidirectional barcode scanners are small in size and light in weight, allowing them to be carried and used anytime and anywhere without being restricted by distance, which is very convenient.

High efficiency and accuracy: It adopts advanced image processing methods and data transmission approaches to scan various barcodes efficiently and accurately.

Wide application: Due to its practicality, it is widely used in various industries such as warehousing systems, medical fields, retail supermarkets, and education.


Advantage in delivery time


With a 1,800-square-meter factory and warehouse, we have our own product inventory. For desktop qr code reader orders under 100 units, we can dispatch them on the same day. For orders between 200 and 1,000 units, we can dispatch them within 2 to 3 days. For orders between 1,000 and 5,000 units, we can dispatch them within a week. The delivery time is very fast.


Xiamen Peite Electronic Technology Co., Ltd. As a professional supplier, in order to deliver the symbol 2D barcode scanner to customers as quickly and safely as possible and reduce waiting time, we have been closely cooperating with world-renowned logistics companies for a long time.

We ensure that the most reasonable and cost-effective shipping routes can be arranged within the shortest time, helping customers seize the market opportunity. If you are interested in our products, please contact our customer service. They will reply within 12 hours.


Freight transportation advantages


About our 1D/2D qr code scanner reader,we support multi-channel transportation such as air freight, sea freight, land freight and express delivery, which can meet your different needs. If you have your own freight forwarder, we can directly send it to your freight forwarder's address. If not, just provide us with your city and postal code, and we can immediately help you find the most favorable freight price.




Why Is a Desktop Design Necessary?

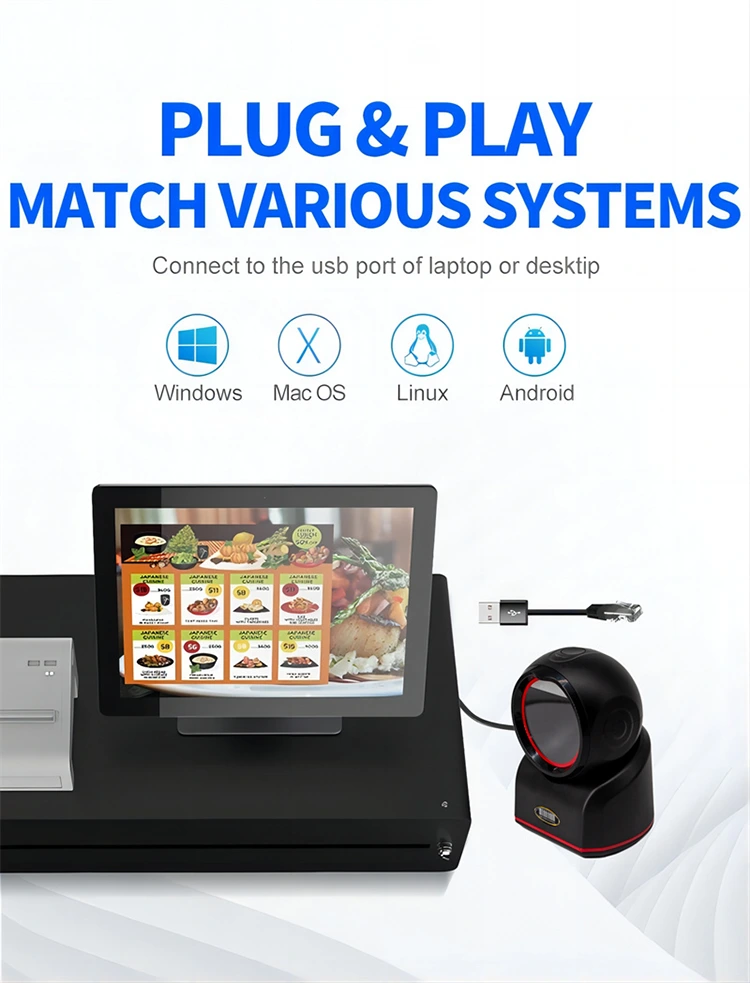

The indispensable tool in commercial retail and efficient counter operations is a compact design with a large scanning window. Operators do not need to hold it; they just need to align the product barcode with the window to quickly identify it.This frees up the operator's hands and enhances the scanning efficiency. The QR code barcode scanner supports both automatic sensing and manual triggering modes, being fast, hands-free, and stable.
